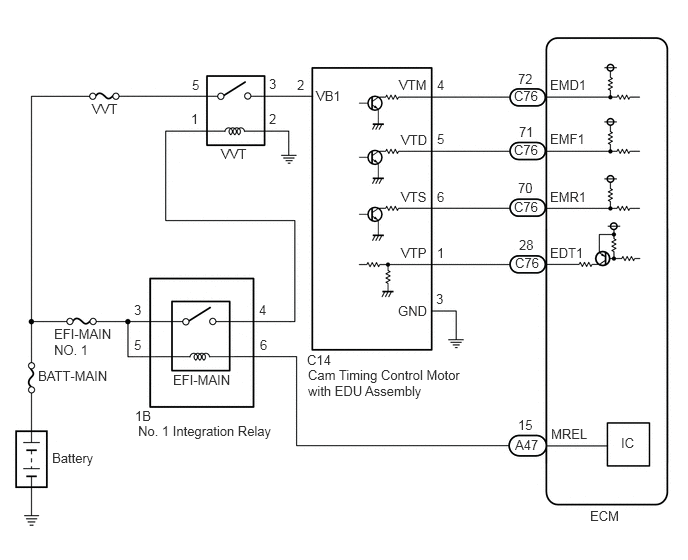

DTC P1360-01: "A" Camshaft Position Actuator Bank 1 General Electrical Failure [06/2018 - 03/2019]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY903742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
