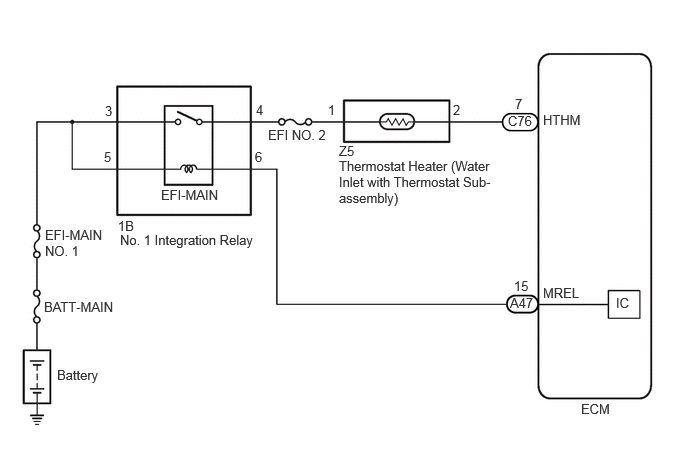

DTC P0597-12: Thermostat Heater Control Circuit Short to Battery [03/2019 - 11/2022]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY999973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
