Parts Location [09/2022 - 11/2022]: Illustration
WARNING: This page is about a different variant/trim than selected.

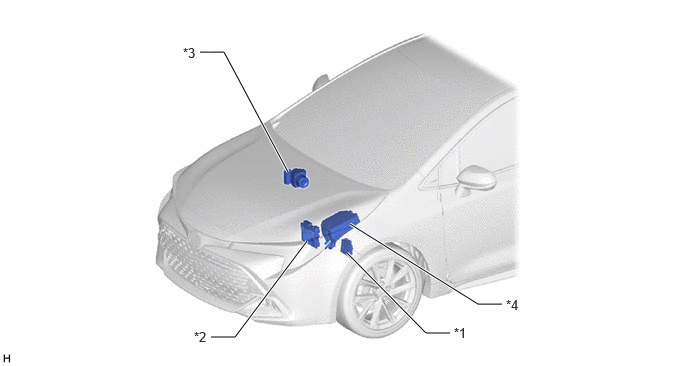

| *1 | TCM | *2 | ECM |
| *3 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*4 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |

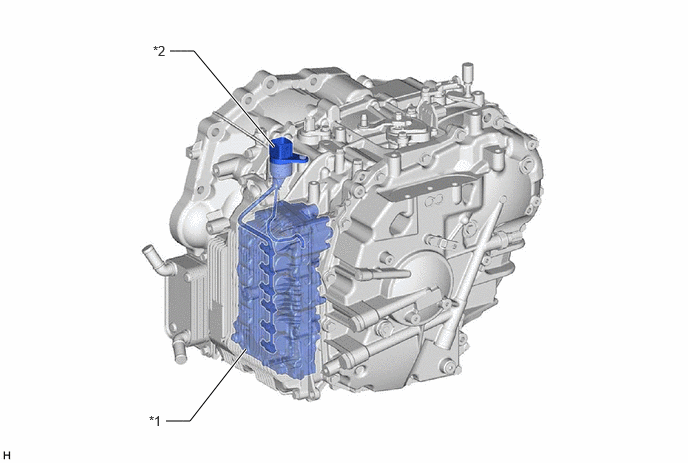

| *1 | TRANSMISSION VALVE BODY ASSEMBLY - SHIFT SOLENOID VALVE SLG - SHIFT SOLENOID VALVE SL1 - SHIFT SOLENOID VALVE SL2 - SHIFT SOLENOID VALVE SLU - SHIFT SOLENOID VALVE SLP - SHIFT SOLENOID VALVE SLS |
*2 | TRANSMISSION WIRE - CVT FLUID TEMPERATURE SENSOR |

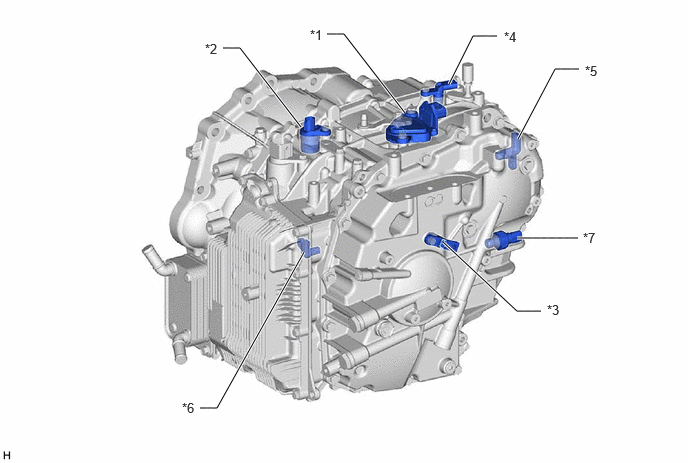

| *1 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *2 | SHIFT STROKE SENSOR |
| *3 | TRANSMISSION REVOLUTION SENSOR (NT) | *4 | TRANSMISSION REVOLUTION SENSOR (NOUT) |
| *5 | TRANSMISSION REVOLUTION SENSOR (NSS) | *6 | TRANSMISSION REVOLUTION SENSOR (NC1) |
| *7 | OIL PRESSURE SENSOR | - | - |

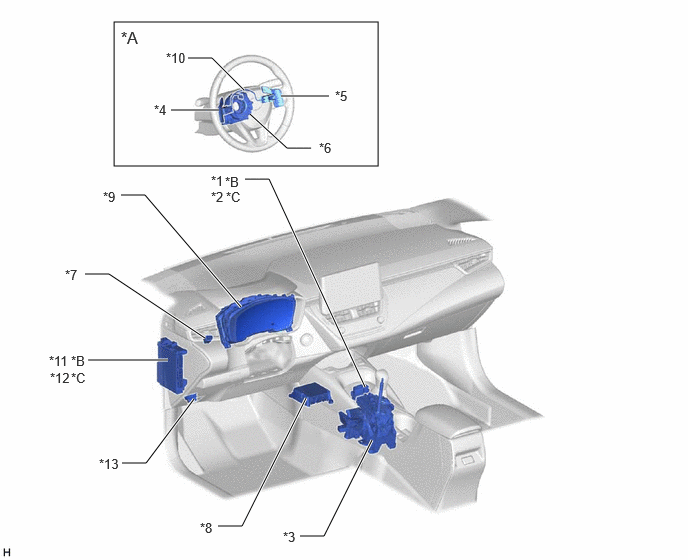

| *A | w/ Shift Paddle Switch | *B | for TMC Made |
| *C | for TMMMS Made | - | - |
| *1 | COMBINATION SWITCH ASSEMBLY - DRIVE MODE SELECT SWITCH |
*2 | COMBINATION SWITCH ASSEMBLY - SPORT SWITCH |
| *3 | SHIFT LOCK CONTROL UNIT ASSEMBLY - TRANSMISSION CONTROL SWITCH |
*4 | SHIFT PADDLE SWITCH LH (NO. 1 TRANSMISSION SHIFT SWITCH ASSEMBLY) |
| *5 | SHIFT PADDLE SWITCH RH (NO. 2 TRANSMISSION SHIFT SWITCH ASSEMBLY) |
*6 | SPIRAL CABLE SUB-ASSEMBLY |
| *7 | STOP LIGHT SWITCH ASSEMBLY | *8 | AIRBAG SENSOR ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
| *9 | COMBINATION METER ASSEMBLY | *10 | NO. 1 SWITCH WIRE |
| *11 | POWER DISTRIBUTION BOX ASSEMBLY | *12 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *13 | DLC3 | - | - |
