System Diagram [01/2019 - 09/2022]
WARNING: This page is about a different variant/trim than selected.
HINT:

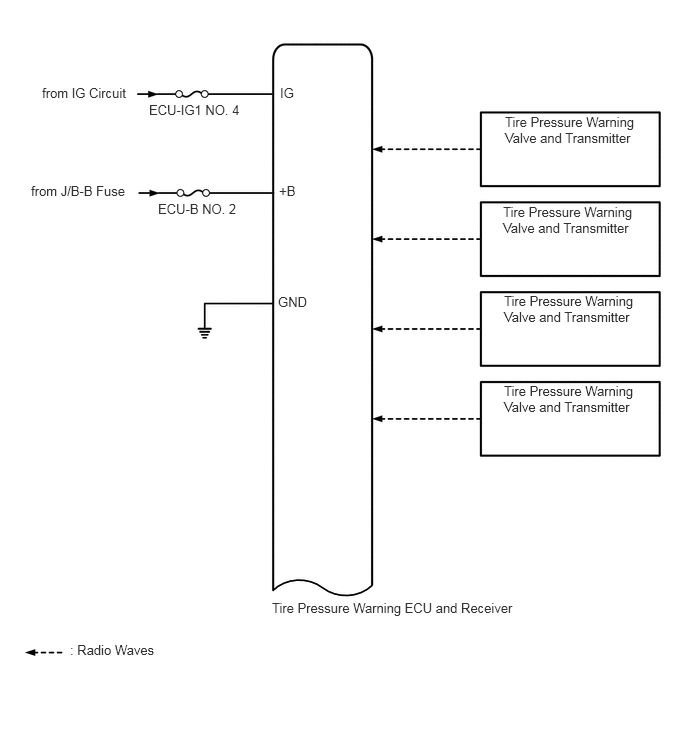

Each tire pressure warning valve and transmitter sends its transmitter ID, temperature and tire pressure information to the tire pressure warning ECU and receiver.

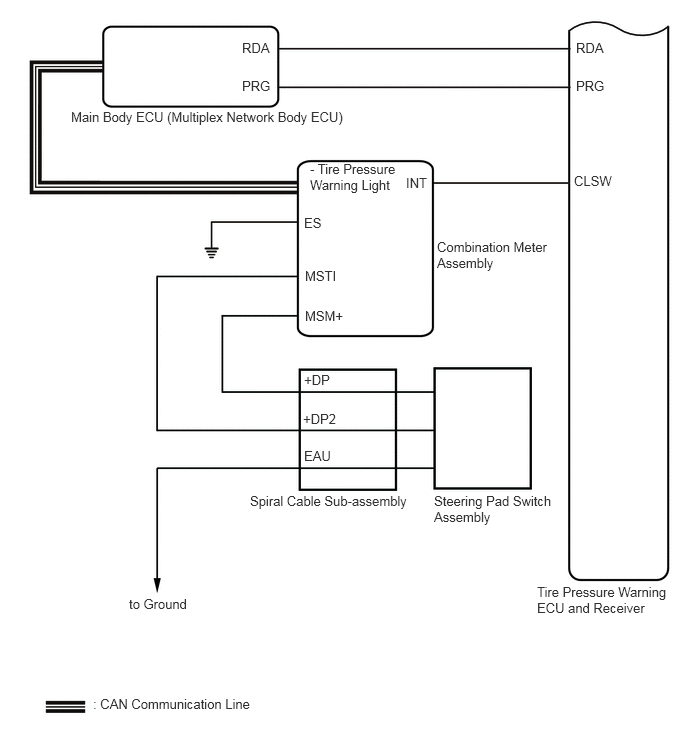

| Transmitting ECU (Transmitter) | Receiving ECU | Signal | Communication Method |
|---|---|---|---|
| Combination Meter Assembly | Main Body ECU (Multiplex Network Body ECU) | Vehicle speed signal | CAN communication line |
| Main Body ECU (Multiplex Network Body ECU) | Combination Meter Assembly | Tire pressure warning light signal | CAN communication line |
