System Diagram [09/2022 - 11/2022]

WARNING: This page is about a different variant/trim than selected.

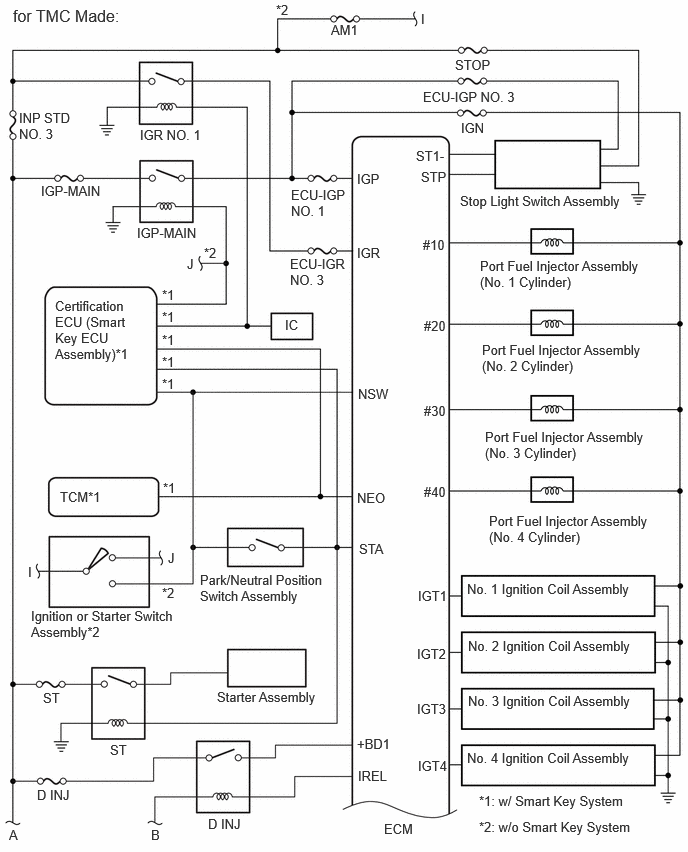

GTY1103274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

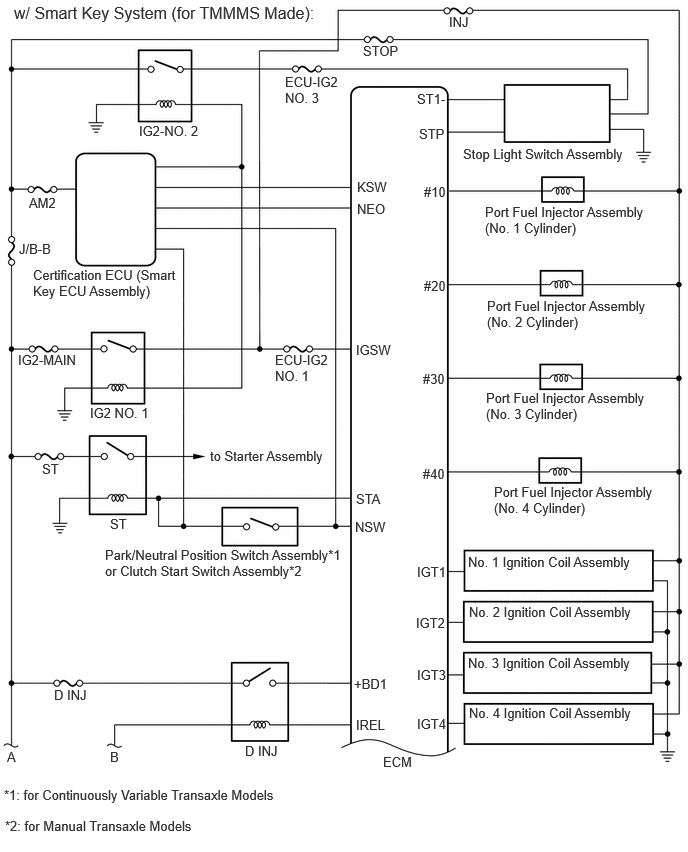

GTY1106857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

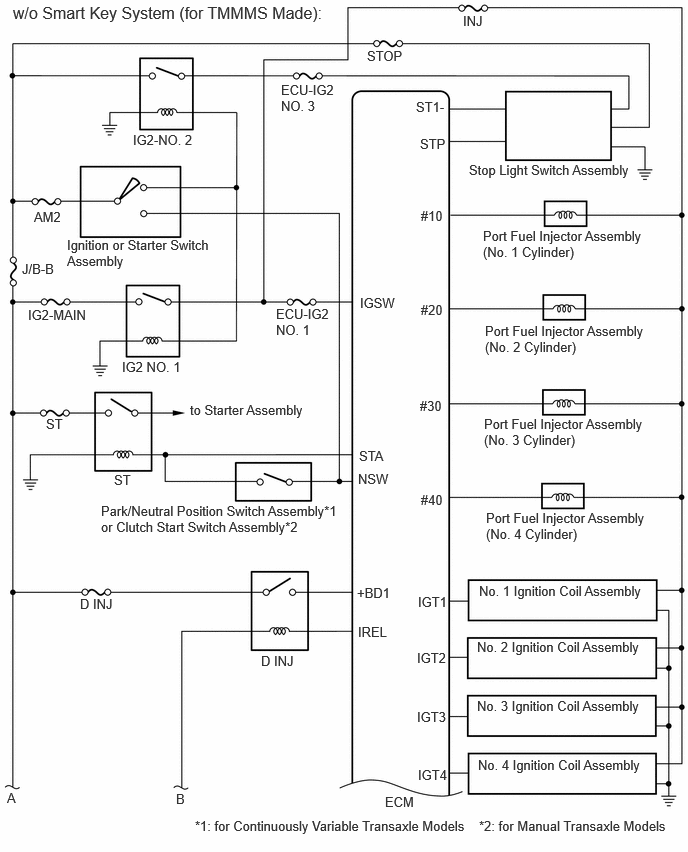

GTY1104589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

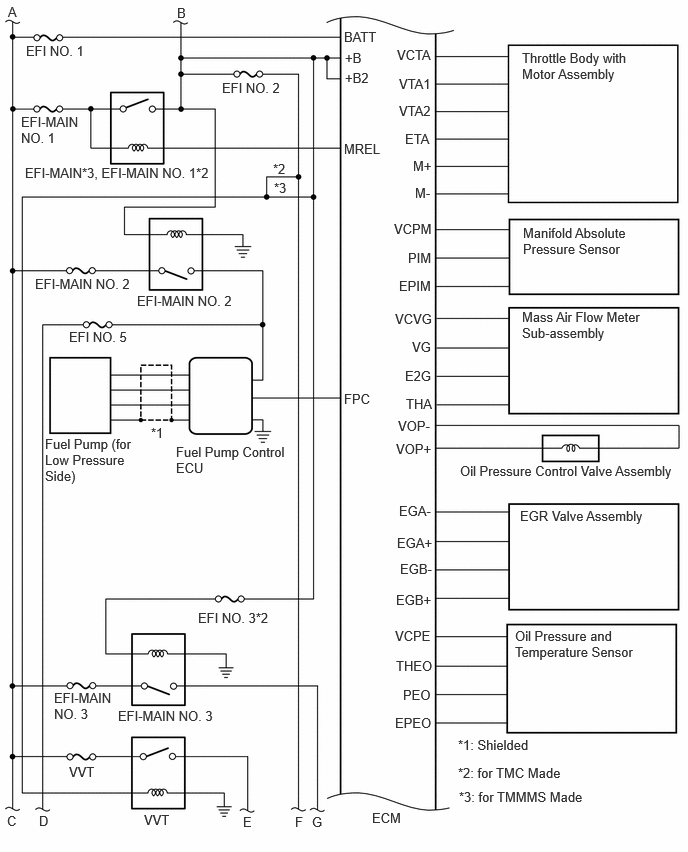

GTY1103395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

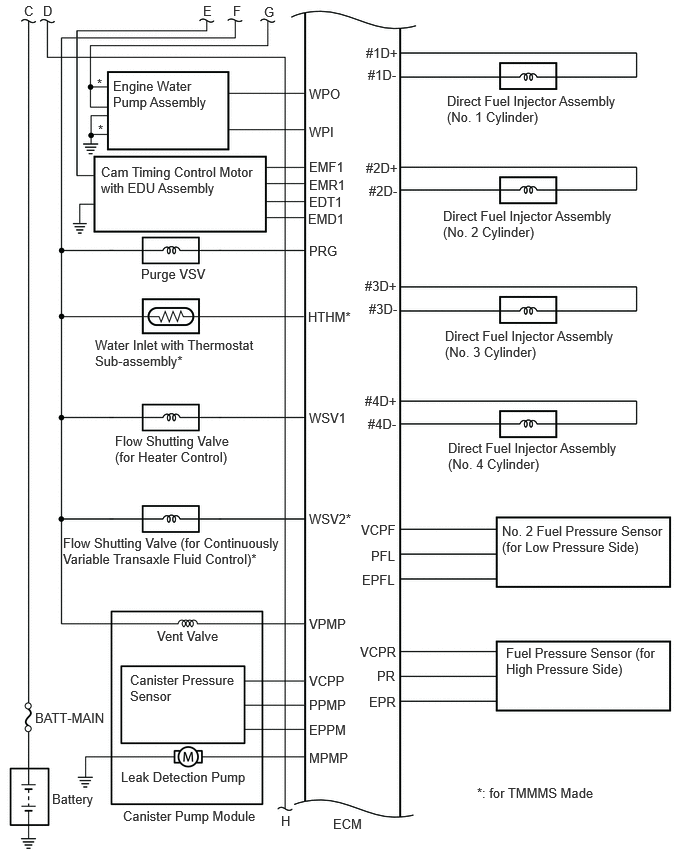

GTY1107009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY840296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

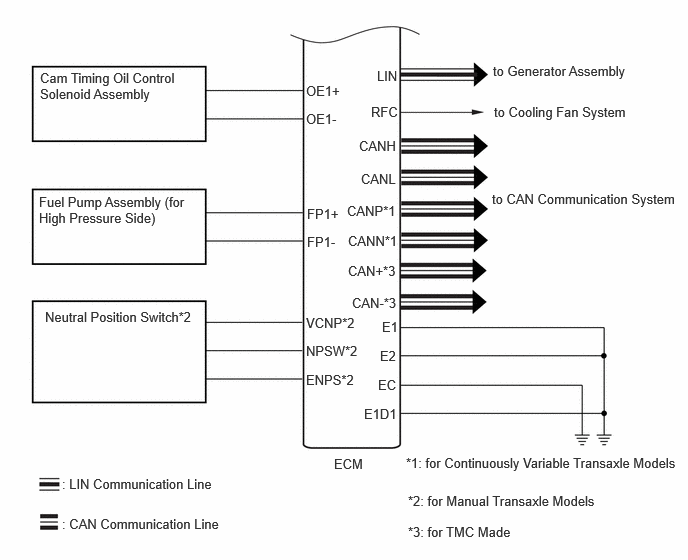

GTY1106981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
