System Diagram [09/2019 - 06/2021]

WARNING: This page is about a different variant/trim than selected.

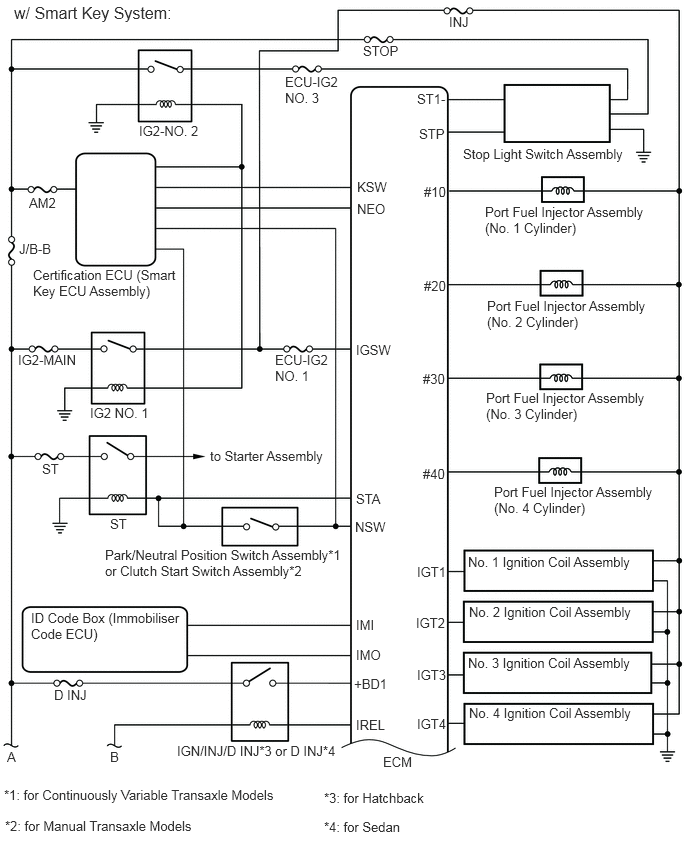

GTY882833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

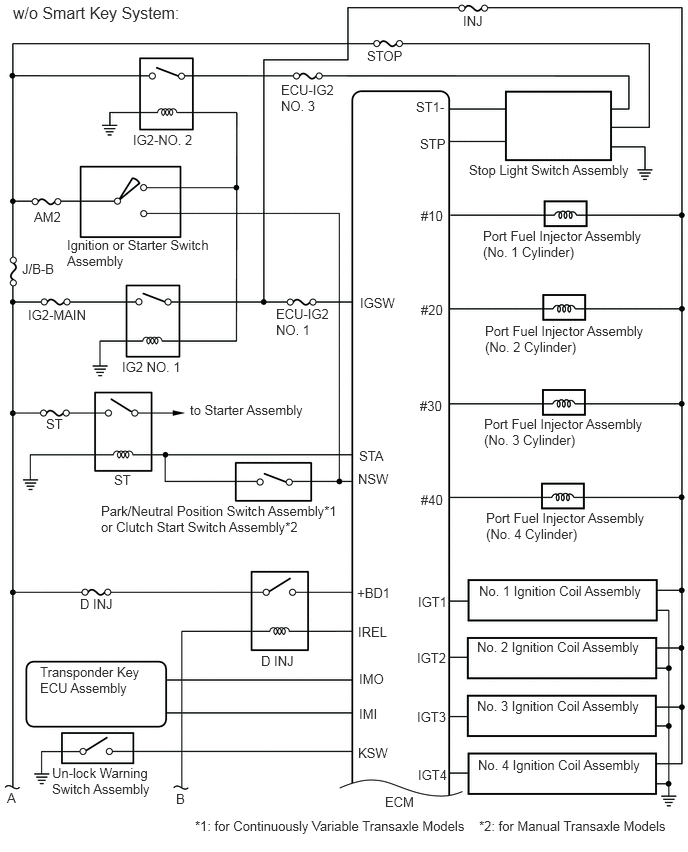

GTY856734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

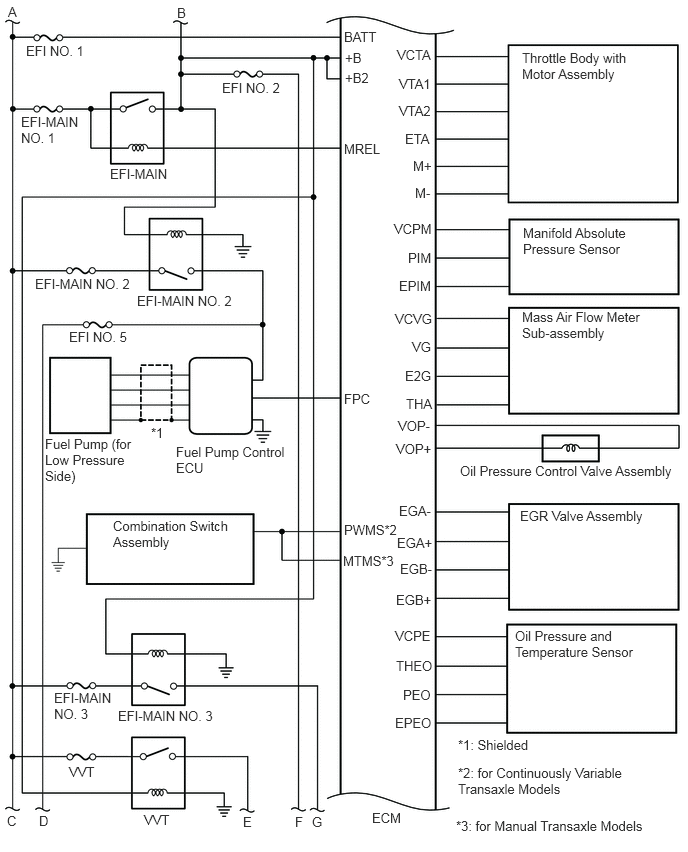

GTY839396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

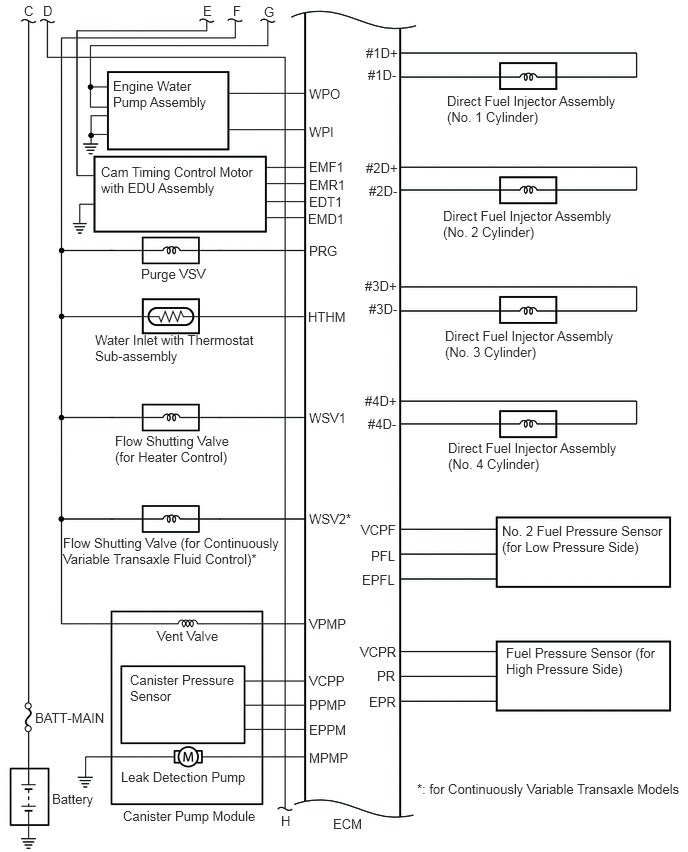

GTY898511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

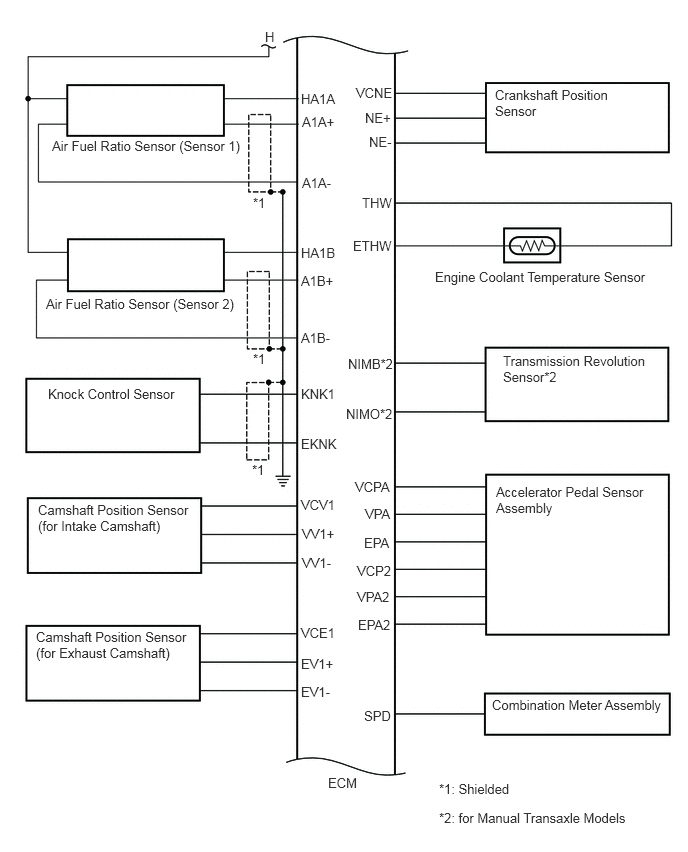

GTY840296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

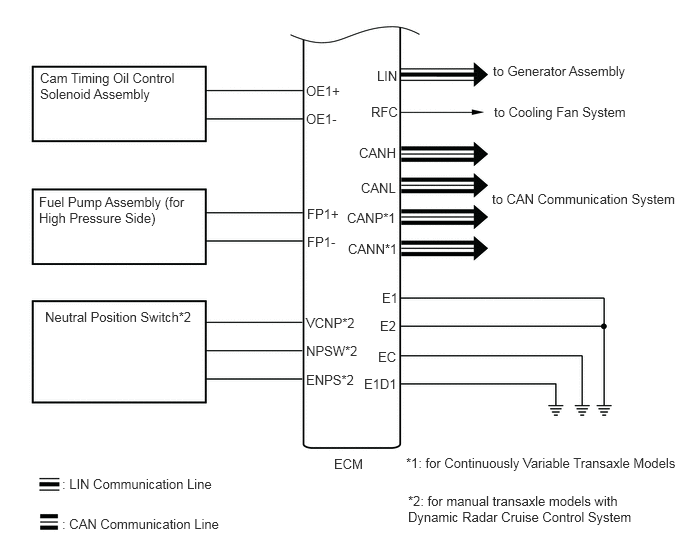

GTY927737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
