System Diagram [06/2018 - 01/2019]

WARNING: This page is about a different variant/trim than selected.

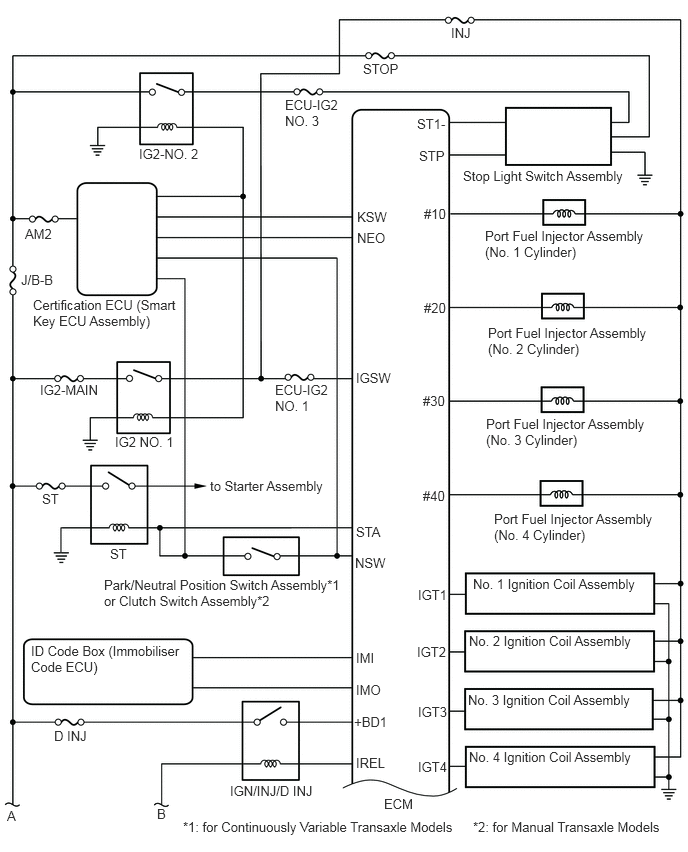

GTY843868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY839396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

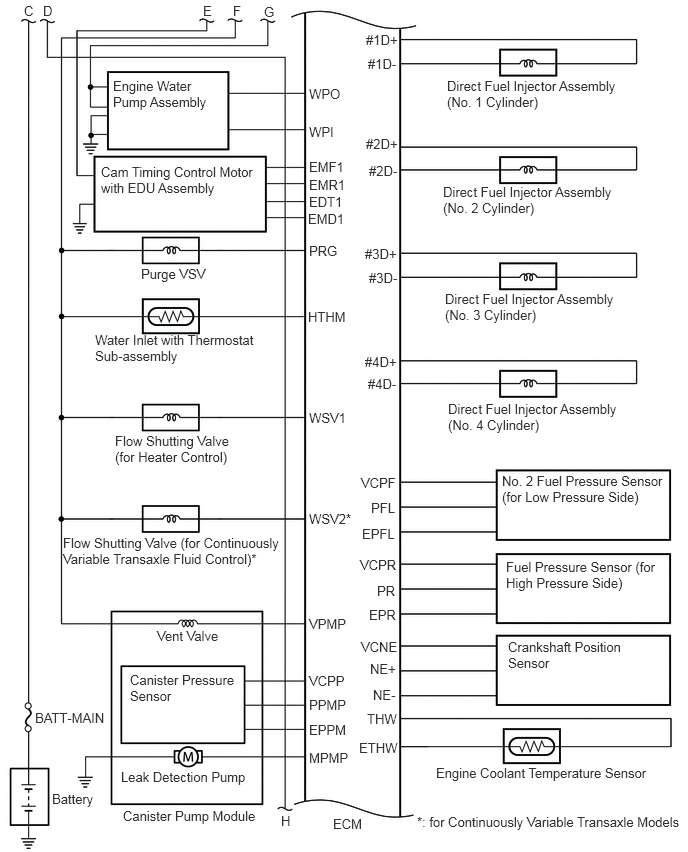

GTY856004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

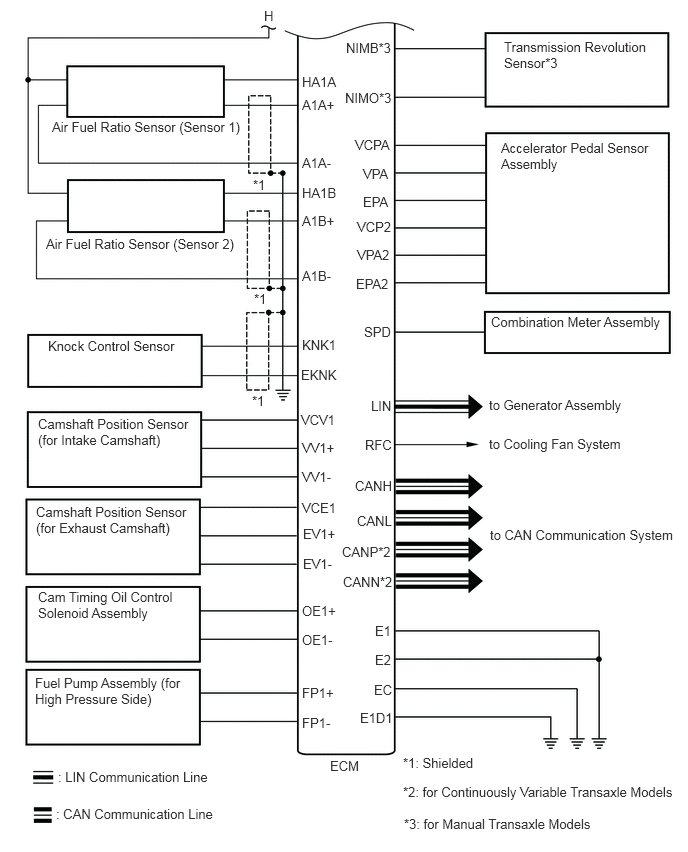

GTY850747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
