Parts Location [01/2019 - 09/2019]: Illustration
WARNING: This page is about a different variant/trim than selected.

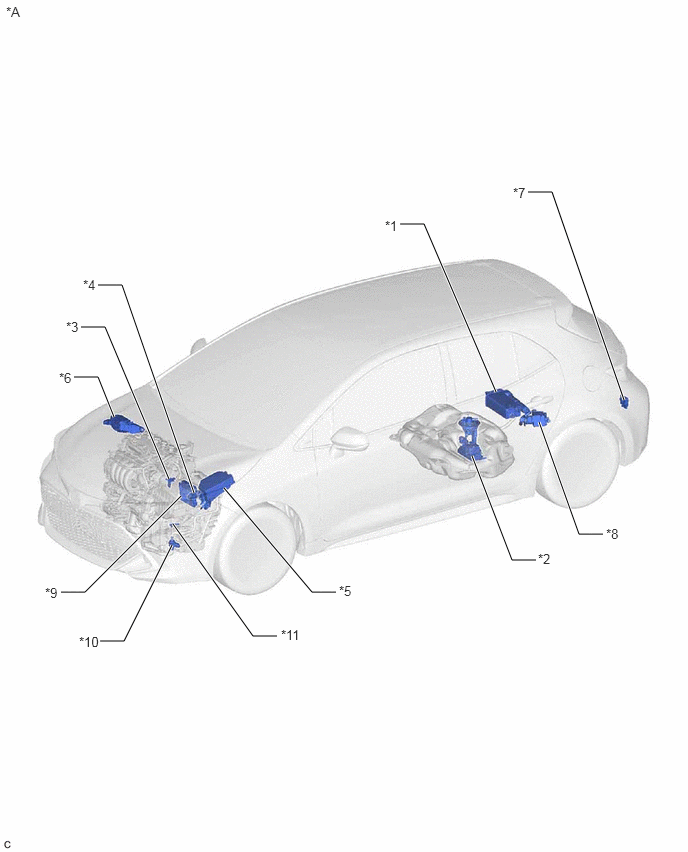

| *A | for Hatchback | - | - |
| *1 | CANISTER | *2 | FUEL PUMP (for Low Pressure Side) |
| *3 | MASS AIR FLOW METER SUB-ASSEMBLY | *4 | PARK / NEUTRAL POSITION SWITCH ASSEMBLY (for Continuously Variable Transaxle Models) |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY | *6 | NO. 2 RELAY BLOCK ASSEMBLY |
| *7 | FUEL PUMP CONTROL ECU | *8 | CANISTER PUMP MODULE |
| *9 | ECM | *10 | FLOW SHUTTING VALVE (for Continuously Variable Transaxle Fluid Control) (for Continuously Variable Transaxle Models) |
| *11 | TRANSMISSION REVOLUTION SENSOR (for Manual Transaxle Models) | - | - |
| *A | for Sedan | - | - |
| *1 | CANISTER | *2 | FUEL PUMP (for Low Pressure Side) |
| *3 | MASS AIR FLOW METER SUB-ASSEMBLY | *4 | PARK / NEUTRAL POSITION SWITCH ASSEMBLY (for Continuously Variable Transaxle Models |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY | *6 | NO. 2 RELAY BLOCK ASSEMBLY |
| *7 | FUEL PUMP CONTROL ECU | *8 | CANISTER PUMP MODULE |
| *9 | ECM | *10 | FLOW SHUTTING VALVE (for Continuously Variable Transaxle Fluid Control) (for Continuously Variable Transaxle Models) |
| *11 | TRANSMISSION REVOLUTION SENSOR (for Manual Transaxle Models) | - | - |
| *1 | AIR FUEL RATIO SENSOR (Sensor 2) | *2 | ENGINE COOLANT TEMPERATURE SENSOR |
| *3 | PORT FUEL INJECTOR ASSEMBLY | *4 | NO. 2 FUEL PRESSURE SENSOR (for Low Pressure Side) |
| *5 | VACUUM SWITCHING VALVE (PURGE VSV) | *6 | WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
| *7 | THROTTLE BODY WITH MOTOR ASSEMBLY | *8 | CRANKSHAFT POSITION SENSOR |
| *9 | DIRECT FUEL INJECTOR ASSEMBLY | - | - |
| *1 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY | *2 | CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
| *3 | EGR VALVE ASSEMBLY | *4 | FUEL PRESSURE SENSOR (for High Pressure Side) |
| *5 | KNOCK CONTROL SENSOR | *6 | MANIFOLD ABSOLUTE PRESSURE SENSOR |
| *7 | ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING) | - | - |
| *1 | AIR FUEL RATIO SENSOR (Sensor 1) | *2 | FUEL PUMP ASSEMBLY (for High Pressure Side) |
| *3 | OIL PRESSURE AND TEMPERATURE SENSOR | *4 | OIL PRESSURE CONTROL VALVE ASSEMBLY |
| *5 | CAMSHAFT POSITION SENSOR (for Intake Camshaft) | *6 | CAMSHAFT POSITION SENSOR (for Exhaust Camshaft) |
| *7 | IGNITION COIL ASSEMBLY | *8 | FLOW SHUTTING VALVE (for Heater Control) |
