Section 143 (Engine Control System (M20A-FKS) - Circuit Tests (3 Of 6))
>>
SFI System
>>
ECM Power Source Circuit [06/2018 - 01/2019]
>>
Wiring Diagram

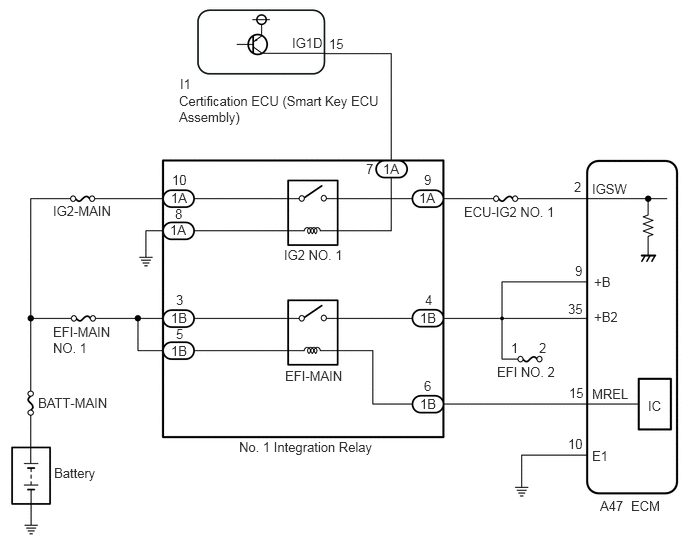

ECM Power Source Circuit [06/2018 - 01/2019]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
