Removal [03/2019 - 09/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.

PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 1
REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 9 [03/2019 - 09/2019] , or refer to PROCEDURE - Step 9 [09/2019 - 06/2021] , or refer to PROCEDURE - Step 9 [06/2021 - 09/2022]
REMOVE INTAKE MANIFOLD
Refer to REMOVAL [01/2019 - 09/2022]

REMOVE FLYWHEEL HOUSING SIDE COVER

Disengage the claw as shown in the illustration to remove the flywheel housing side cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE STARTER ASSEMBLY

Disconnect the starter assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the claw and remove the starter assembly cover (cover B) from the starter assembly cover (base) and starter assembly cover (cover A).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the nut to disconnect the engine wire from terminal 30.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

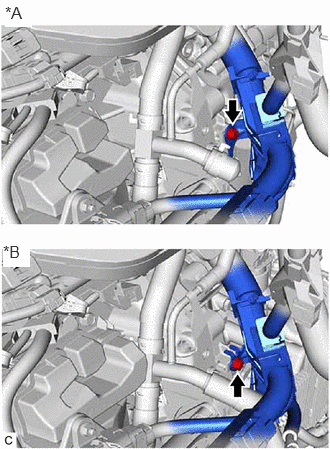

Remove the bolt and disconnect the engine wire.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Manual Transaxle
*B	for CVT

Remove the 2 bolts and starter assembly.

Remove the starter assembly cover (cover A) from the starter assembly cover (base).

Remove the nut and starter terminal from the starter assembly.

Disengage the 2 claws and remove the starter terminal from the starter assembly cover (base).
