Components [06/2018 - ]

WARNING: This page is about a different variant/trim than selected.

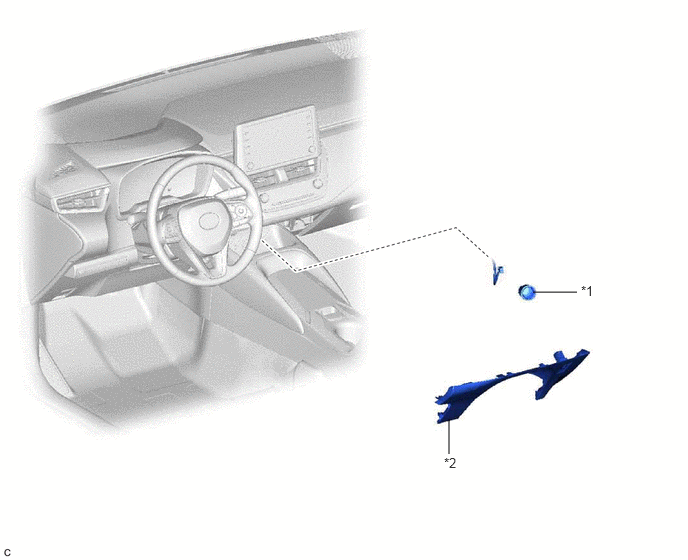

Fig 1: Engine Switch Replacement Components
GTY851440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE SWITCH *2 LOWER CENTER INSTRUMENT PANEL FINISH PANEL
