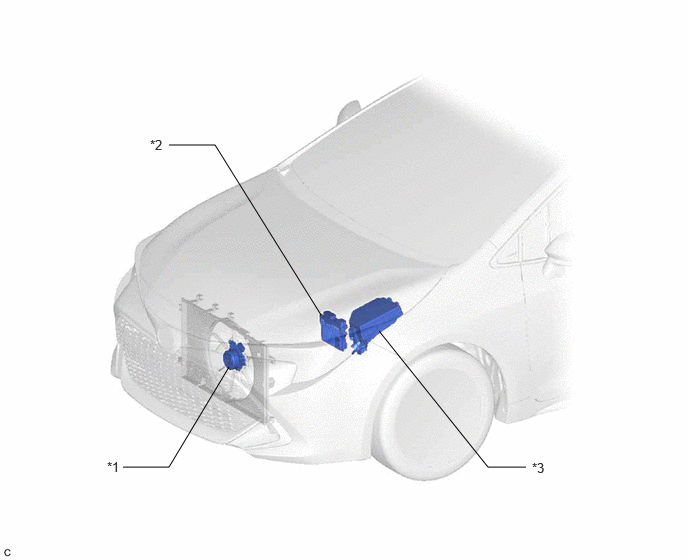

Parts Location [06/2018 - 11/2022]: Illustration
WARNING: This page is about a different variant/trim than selected.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
FAN WITH MOTOR ASSEMBLY
- COOLING FAN MOTOR
- COOLING FAN ECU |
*2 |
ECM |
| *3 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- NO. 1 INTEGRATION RELAY
(EFI-MAIN RELAY) |
- |
- |
