Section 131 (Engine Cooling Fan System (M20A-FKS) ( W/O Cooling Fan Ecu) - Diagnostics & Circuit Tests)
>>
COOLING FAN SYSTEM (w/o Cooling Fan ECU)
>>
Cooling Fan Circuit [01/2019 - 11/2022]
>>

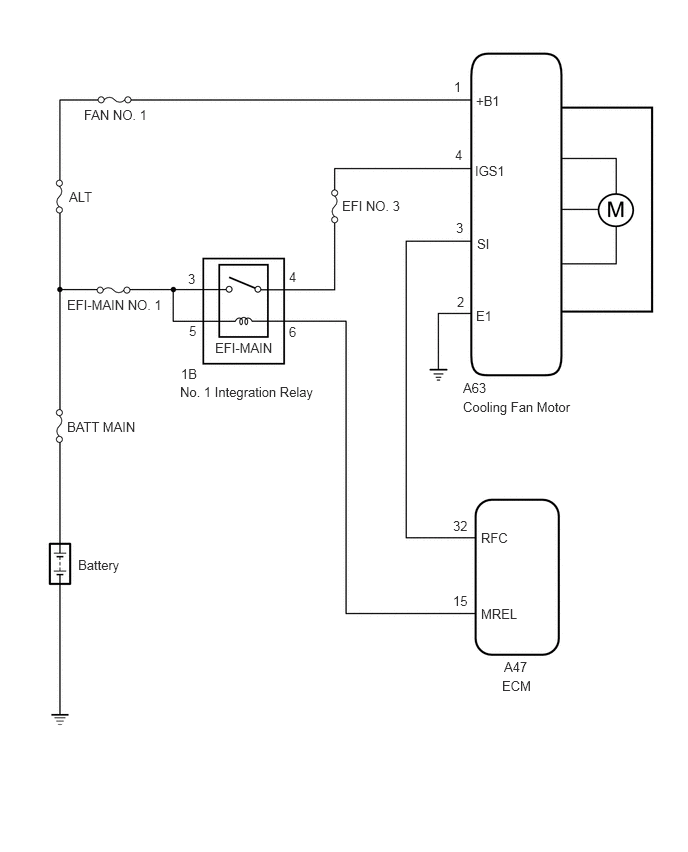

Wiring Diagram
Cooling Fan Circuit [01/2019 - 11/2022]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
