System Diagram [01/2019 - 09/2022]

WARNING: This page is about a different variant/trim than selected.

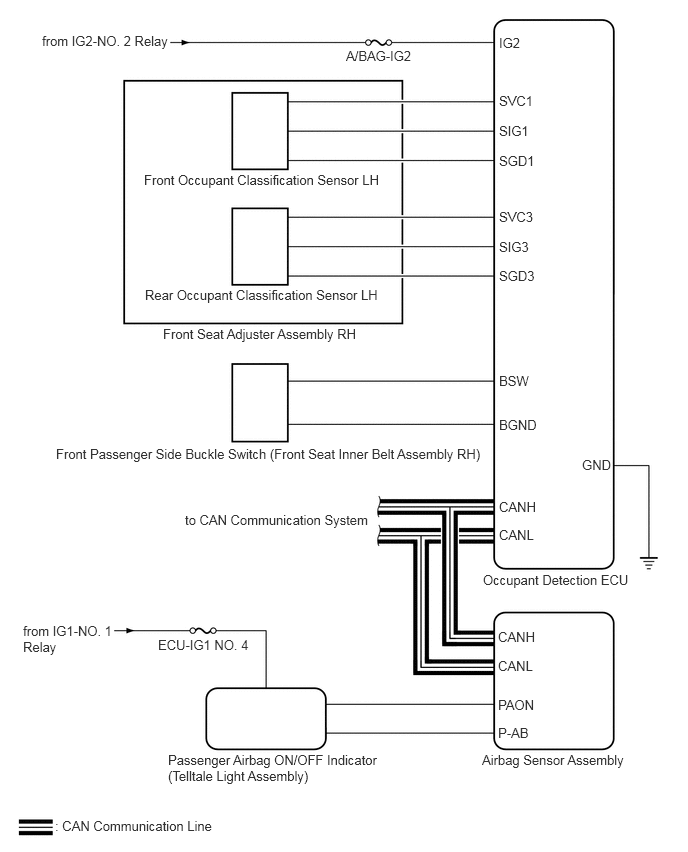

GTY772439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU
(Transmitter)		 Receiving ECU Signal Communication Method
Airbag Sensor Assembly Occupant Detection ECU
  • Crash detection signal
  • Acceleration signal
 CAN
Skid Control ECU (Brake Booster with Master Cylinder Assembly) Occupant Detection ECU
  1. Vehicle speed signal
Occupant Detection ECU Airbag Sensor Assembly
  • Occupant classification system failure signal
  • Occupant classification system zero point error signal
  • Occupant state for front passenger signal
  • Buckle switch state of front passenger signal
