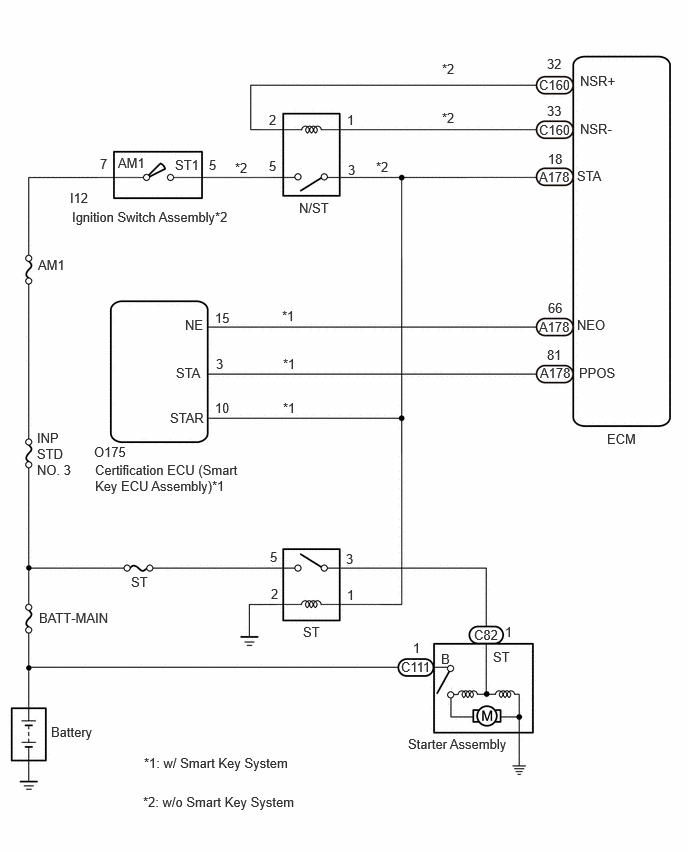

DTC P0615-12: Starter Relay Circuit Short to Battery [09/2024 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY1180703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
