DTC P0615-12: Starter Relay Circuit Short to Battery [03/2023 - 09/2024]: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.

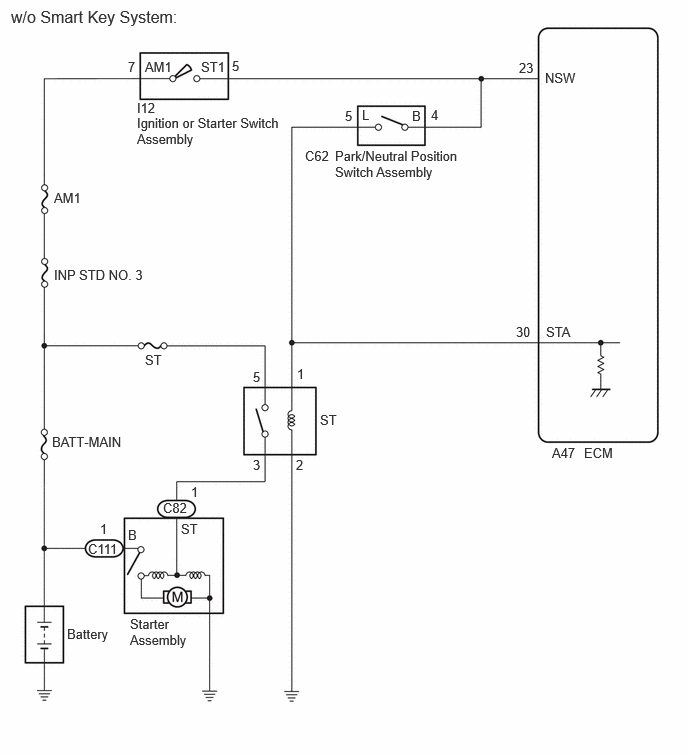

for K120
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

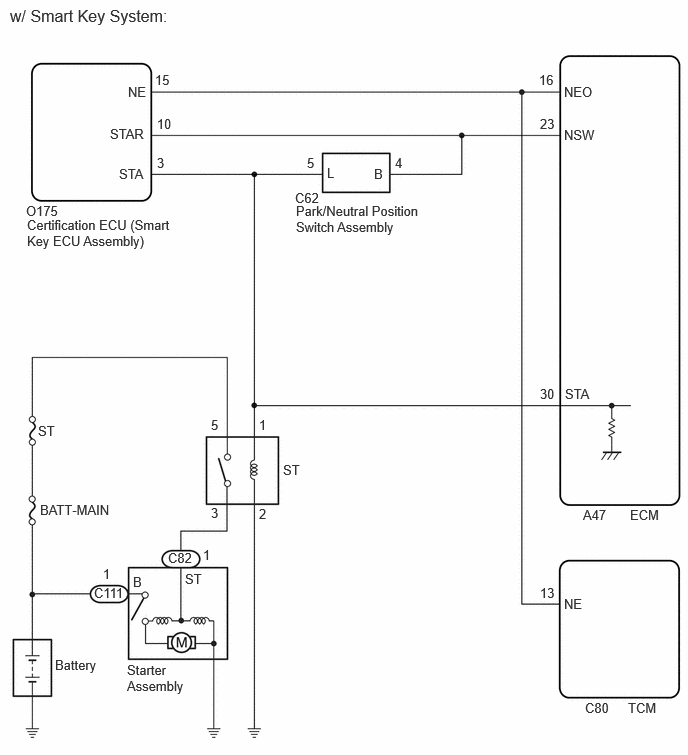

for K121
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
