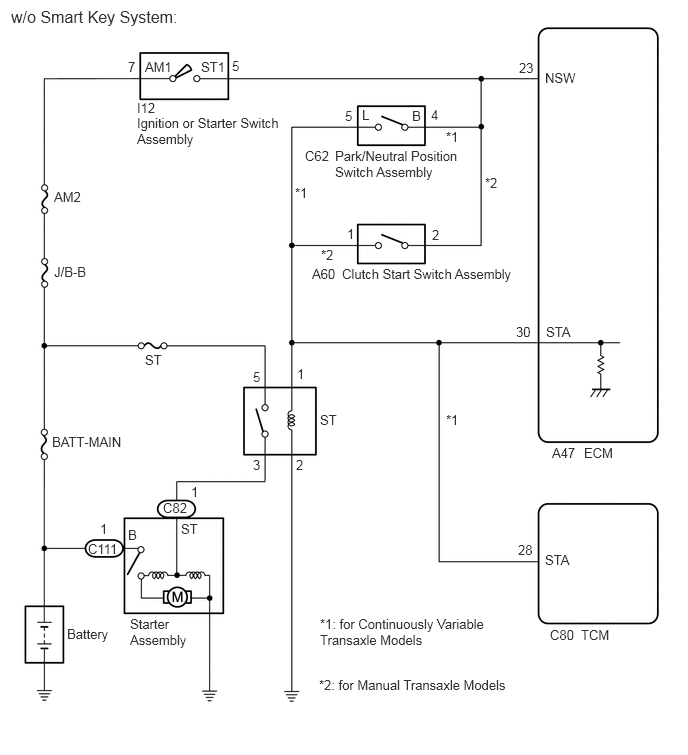

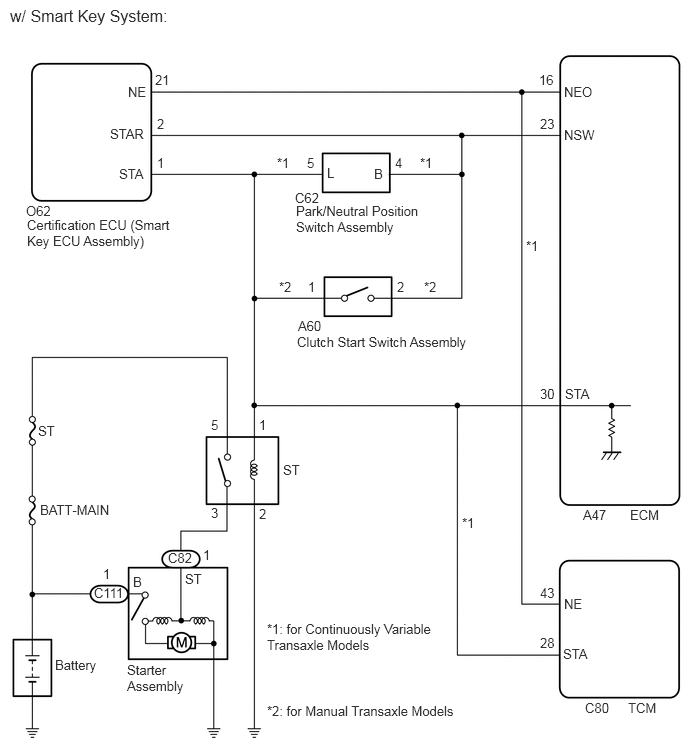

DTC P0615-12: Starter Relay Circuit Short to Battery [01/2019 - 03/2019]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
