Components [11/2022 - ]

WARNING: This page is about a different variant/trim than selected.
Fig 1: Engine Assembly Replacement Components With Torque Specifications [11/2022 - ] (1 Of 12)
GTY870946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A Type A *B Type B
*C Type C - -
*1 NO. 1 ENGINE UNDER COVER ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -
Fig 2: Engine Assembly Replacement Components [11/2022 - ] (2 Of 12)
GTY1107963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR ENGINE UNDER COVER RH *2 REAR ENGINE UNDER COVER LH
*a Type A: x 4
Type B: x 5		 - -

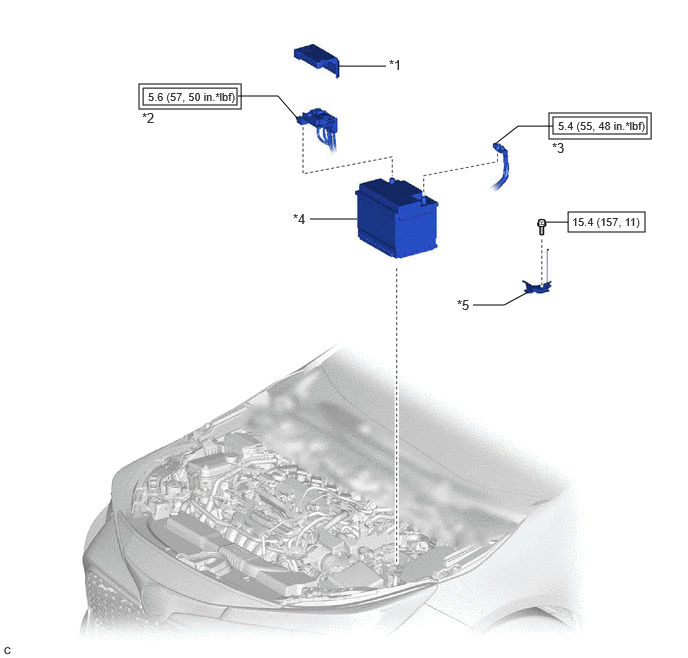

Fig 3: Engine Assembly Replacement Components With Torque Specifications [11/2022 - ] (3 Of 12)
GTY839825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FUSIBLE LINK COVER *2 POSITIVE BATTERY TERMINAL
*3 NEGATIVE BATTERY TERMINAL *4 BATTERY
*5 NO. 2 BATTERY CLAMP - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque

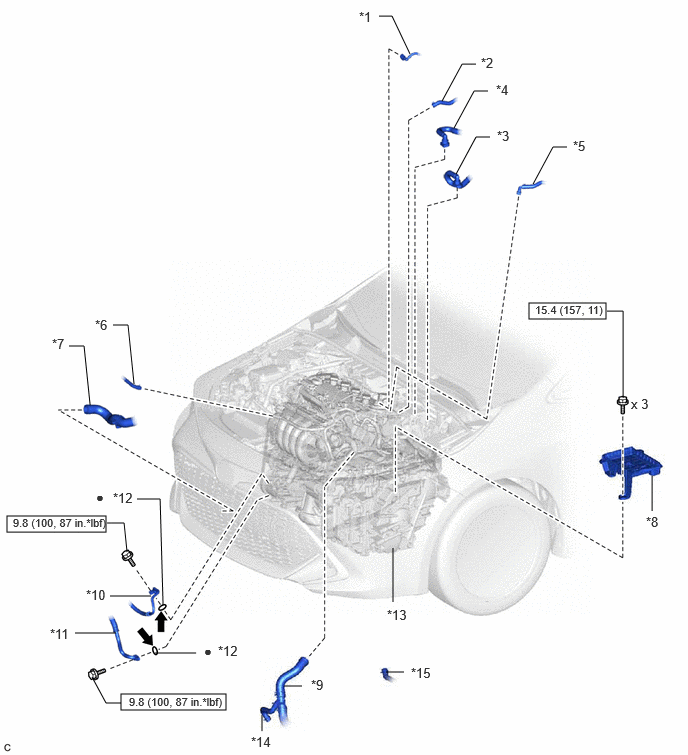

Fig 4: Engine Assembly Replacement Components With Torque Specifications [11/2022 - ] (4 Of 12)
GTY1109118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FUEL TUBE SUB-ASSEMBLY *2 NO. 1 FUEL VAPOR FEED HOSE
*3 INLET HEATER WATER HOSE *4 OUTLET HEATER WATER HOSE
*5 NO. 1 VACUUM HOSE CONNECTOR *6 NO. 4 WATER BY-PASS HOSE
*7 NO. 2 RADIATOR HOSE *8 BATTERY CLAMP SUB-ASSEMBLY
*9 NO. 1 RADIATOR HOSE *10 DISCHARGE HOSE SUB-ASSEMBLY
*11 SUCTION HOSE SUB-ASSEMBLY *12 O-RING
*13 ENGINE ASSEMBLY WITH TRANSAXLE *14 WATER INLET HOSE
*15 NO. 2 WATER BY-PASS HOSE - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Compressor oil ND-OIL 12 or equivalent - -

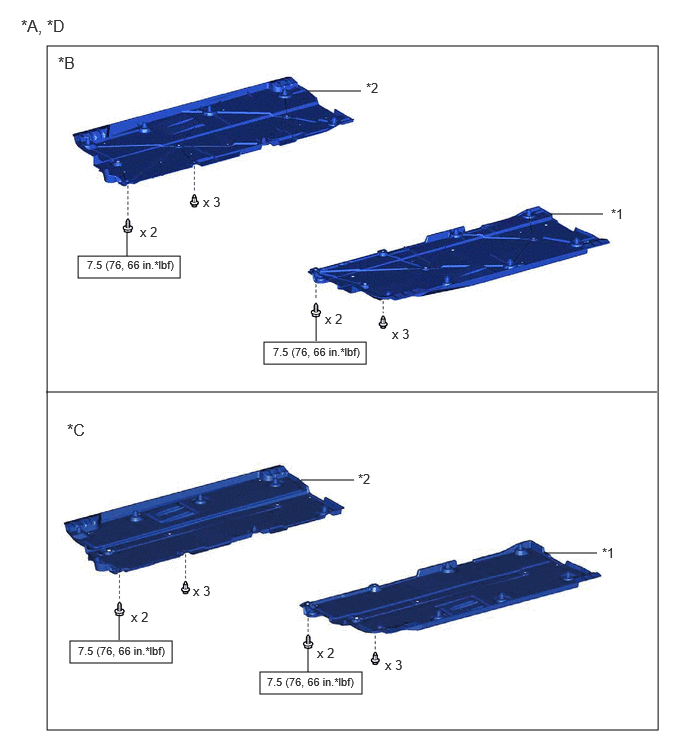

Fig 5: Engine Assembly Replacement Components With Torque Specifications [11/2022 - ] (5 Of 12)
GTY1108463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Hatchback *B Type A
*C Type B *D for Double Wishbone Type Suspension
*1 FRONT FLOOR COVER LH *2 FRONT FLOOR COVER RH
N.m (kgf/cm, ft.lbf): Specified torque - -

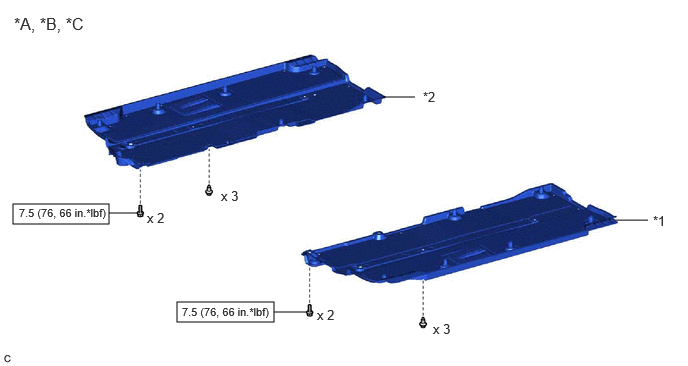

Fig 6: Engine Assembly Replacement Components With Torque Specifications [11/2022 - ] (6 Of 12)
GTY1104301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A except Hatchback *B w/ Cover
*C for Double Wishbone Type Suspension - -
*1 FRONT FLOOR COVER LH *2 FRONT FLOOR COVER RH
N.m (kgf/cm, ft.lbf): Specified torque - -

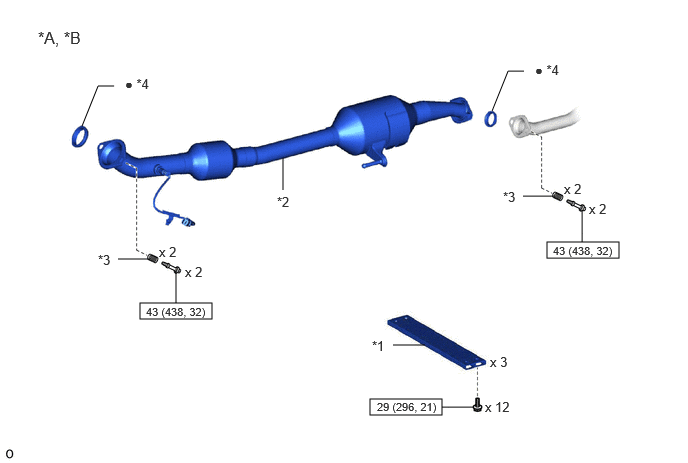

Fig 7: Engine Assembly Replacement Components With Torque Specifications [11/2022 - ] (7 Of 12)
GTY1103813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Hatchback *B for Double Wishbone Type Suspension
*1 FRONT FLOOR CENTER BRACE *2 FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
*3 COMPRESSION SPRING *4 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

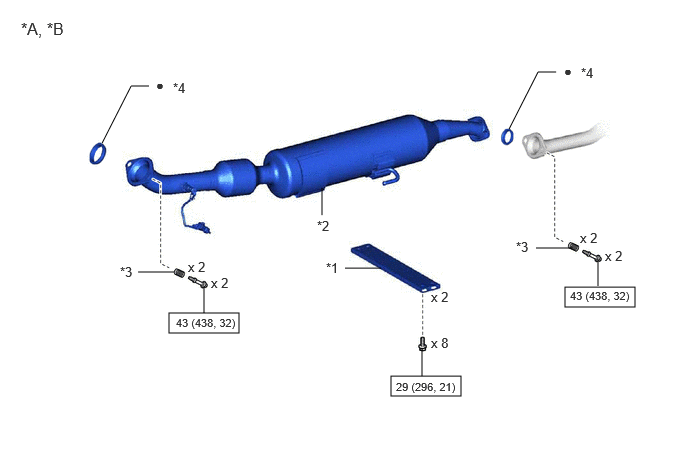

Fig 8: Engine Assembly Replacement Components With Torque Specifications [11/2022 - ] (8 Of 12)
GTY1108269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A except Hatchback *B for Double Wishbone Type Suspension
*1 FRONT FLOOR CENTER BRACE *2 FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
*3 COMPRESSION SPRING *4 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

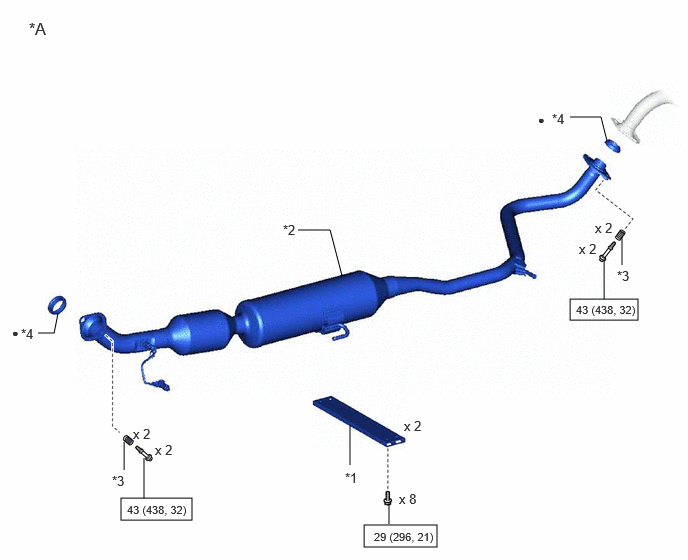

Fig 9: Engine Assembly Replacement Components With Torque Specifications [11/2022 - ] (9 Of 12)
GTY1107675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Torsion Beam Type Suspension - -
*1 FRONT FLOOR CENTER BRACE *2 FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
*3 COMPRESSION SPRING *4 GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

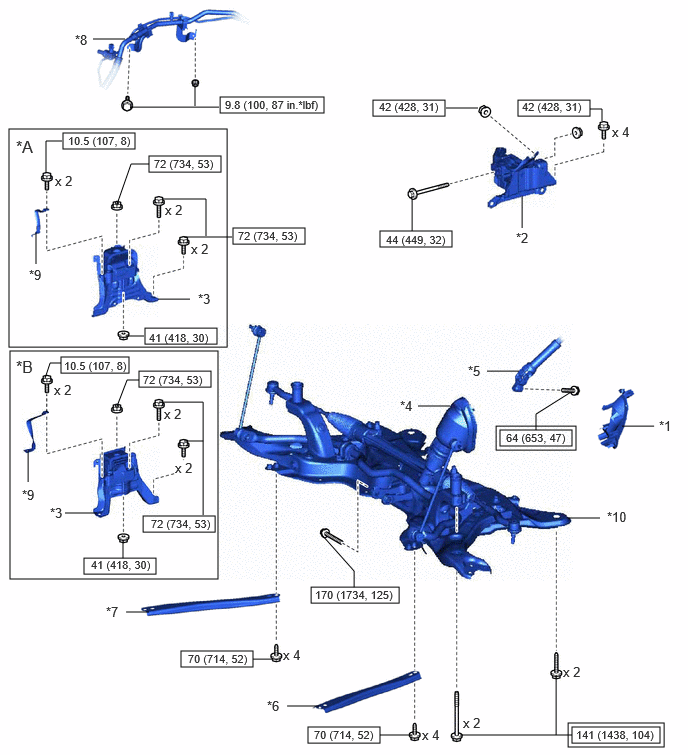

Fig 10: Engine Assembly Replacement Components With Torque Specifications [11/2022 - ] (10 Of 12)
GTY1020063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A Type A *B Type B
*1 COLUMN HOLE COVER SILENCER SHEET *2 ENGINE MOUNTING INSULATOR LH
*3 ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH *4 NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY
*5 NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY *6 REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH
*7 REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH *8 AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY
*9 NO. 2 EARTH WIRE *10 FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque

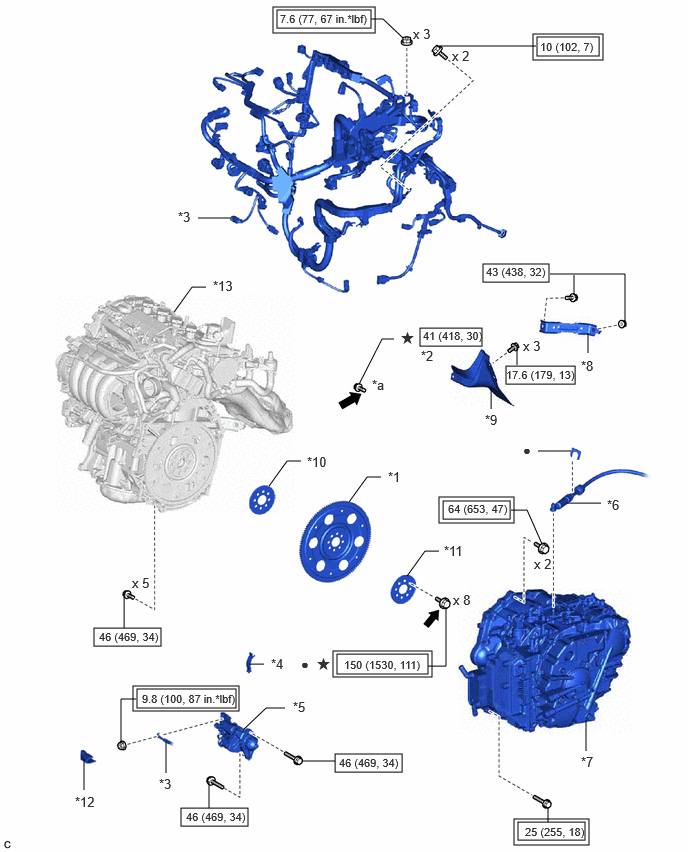

Fig 11: Engine Assembly Replacement Components With Torque Specifications [11/2022 - ] (11 Of 12)
GTY1180808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 DRIVE PLATE AND RING GEAR SUB-ASSEMBLY *2 DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT
*3 ENGINE WIRE *4 FLYWHEEL HOUSING SIDE COVER
*5 STARTER ASSEMBLY *6 FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE
*7 CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY *8 MANIFOLD STAY
*9 DRIVE SHAFT HEAT INSULATOR SUB-ASSEMBLY *10 NO. 1 CRANKSHAFT POSITION SENSOR PLATE
*11 REAR DRIVE PLATE SPACER *12 STARTER COVER
*13 ENGINE ASSEMBLY - -
*a BLACK: x 1
SILVER: x 5		 - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part Adhesive 1324
* Precoated part - -

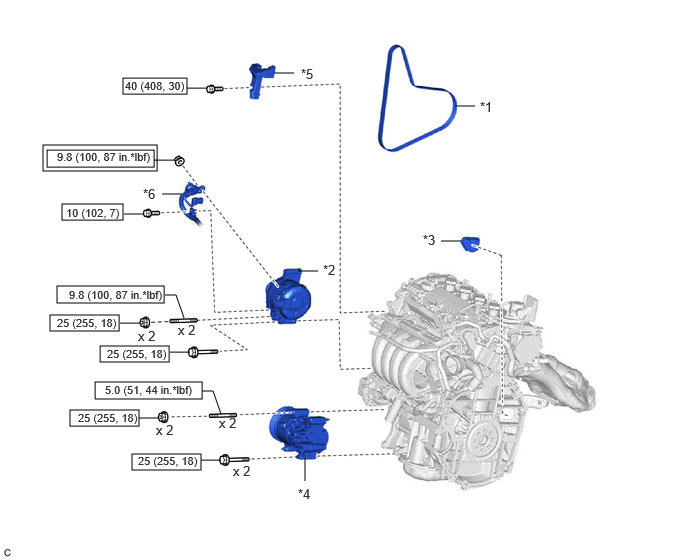

Fig 12: Engine Assembly Replacement Components With Torque Specifications [11/2022 - ] (12 Of 12)
GTY1019208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 V-RIBBED BELT *2 GENERATOR ASSEMBLY
*3 FLYWHEEL HOUSING UNDER COVER *4 COMPRESSOR ASSEMBLY WITH PULLEY
*5 FUEL DELIVERY GUARD *6 ENGINE WIRE
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
