Section 102 (Engine Control System (M20A-FKS) - Circuit Tests (4 Of 6))
>>
SFI System
>>
ECM Power Source Circuit [09/2024 - ]
>>
Wiring Diagram

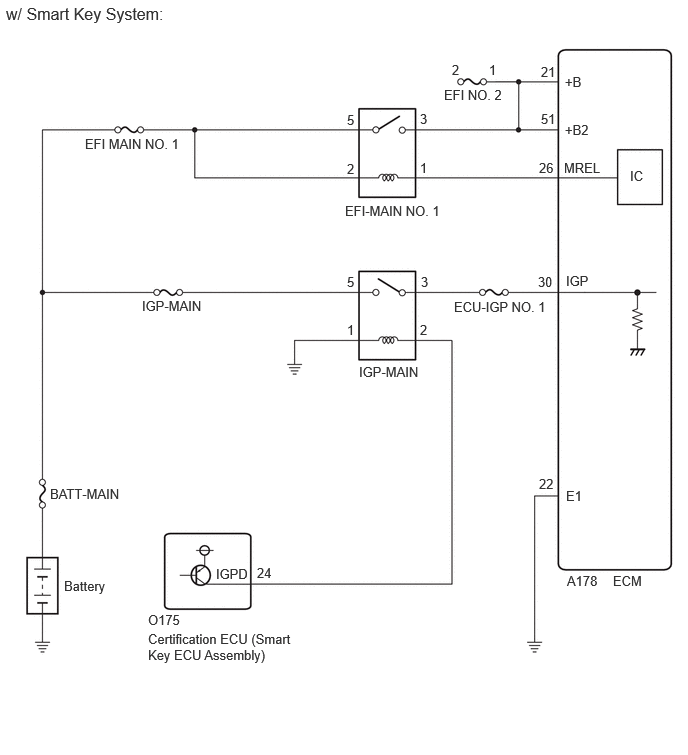

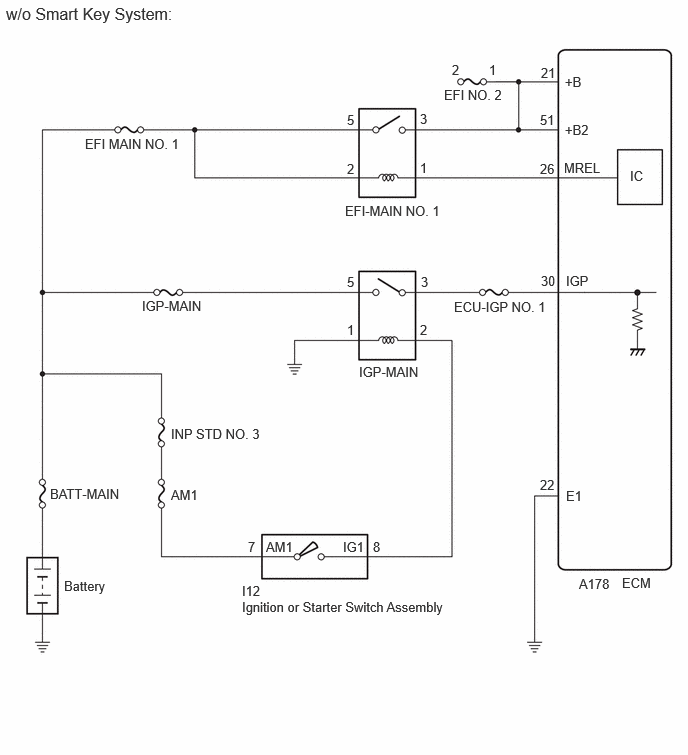

ECM Power Source Circuit [09/2024 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
