Section 102 (Engine Control System (M20A-FKS) - Circuit Tests (4 Of 6))
>>
SFI System
>>
ECM Power Source Circuit [01/2019 - 09/2022]
>>
Wiring Diagram

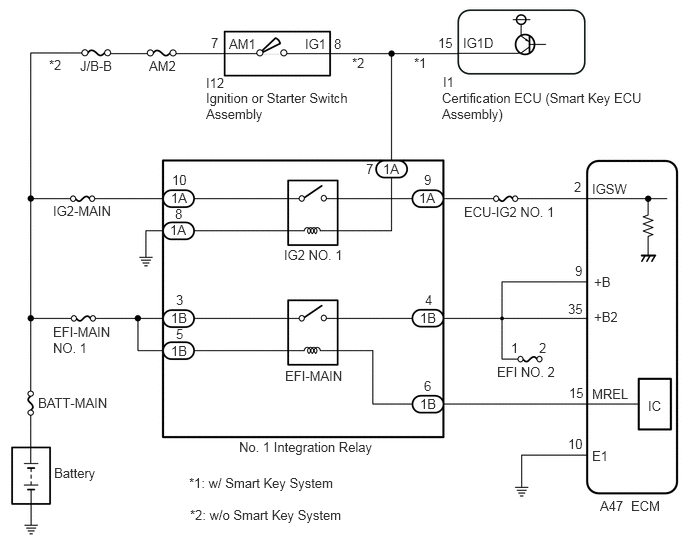

ECM Power Source Circuit [01/2019 - 09/2022]: Wiring Diagram
