Parts Location [09/2022 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

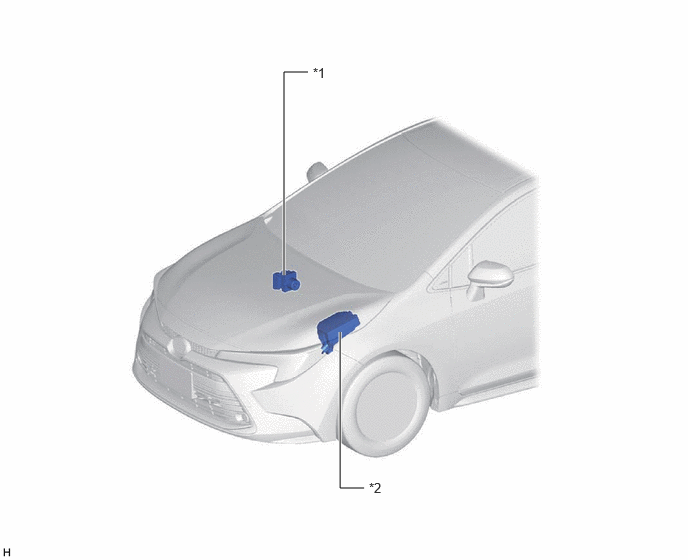

| *1 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*2 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ABS NO. 2 FUSE |

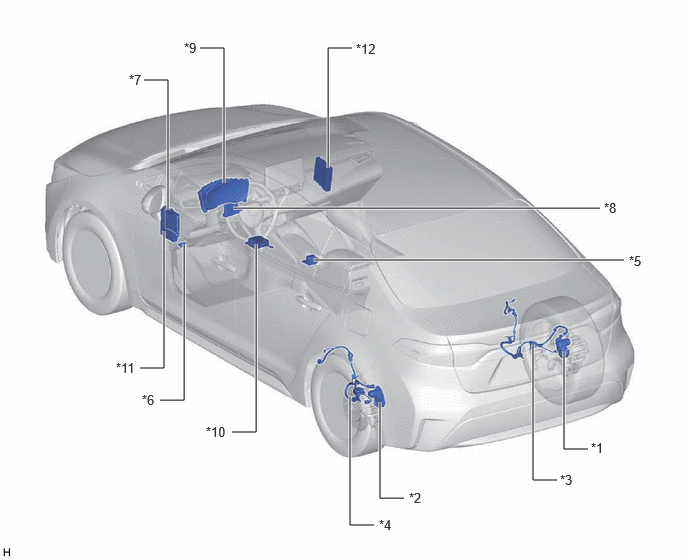

| *1 | PARKING BRAKE ACTUATOR ASSEMBLY RH | *2 | PARKING BRAKE ACTUATOR ASSEMBLY LH |
| *3 | NO. 1 PARKING BRAKE WIRE ASSEMBLY | *4 | NO. 2 PARKING BRAKE WIRE ASSEMBLY |
| *5 | ELECTRIC PARKING BRAKE SWITCH ASSEMBLY | *6 | DLC3 |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *9 | COMBINATION METER ASSEMBLY | *10 | AIRBAG SENSOR ASSEMBLY - ACCELERATION SENSOR |
| *11 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-IGR NO. 2 FUSE |
*12 | HYBRID VEHICLE CONTROL ECU |
