DTC P08D4-11: Shift Solenoid "J" Control Circuit Short to Ground [03/2023 - ]: Procedure

Pre-procedure1

1. Disconnect the C61 transmission wire connector.

   Procedure1

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   13 (SC2) - Body ground	20°C (68°F)	11 to 15 Ω

   Result

   Proceed to
   OK
   NG

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component without harness connected (Transmission Wire)

   Post-procedure1

3. Connect the C61 transmission wire connector.

Result:

NG

See step  4

Result:

OK

See step  2

Pre-procedure1

1. Disconnect the C160 ECM connector.

   Procedure1

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   C160-2 (SC2) - Body ground	20°C (68°F)	11 to 15 Ω

   Result

   Proceed to
   OK
   NG

   Post-procedure1

3. Connect the C160 ECM connector.

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION WIRE - ECM)

Result:

OK

See step  3

HINT:

Refer to REMOVAL [03/2023 - 09/2024] , or refer to REMOVAL [09/2024 - ]

Result

Result:

NEXT

PERFORM REGISTRATION AND INITIALIZATION

for Registration: Refer to REGISTRATION [03/2023 - ]

for Initialization: Refer to INITIALIZATION [03/2023 - ]

Pre-procedure1

1. Disconnect the C61 transmission wire connector.
2. Disconnect the transmission wire connector from the shift solenoid valve SC2.

   HINT:

   Refer to REMOVAL [03/2023 - ]

   Procedure1

3. Measure the resistance according to the value(s) in the table below.

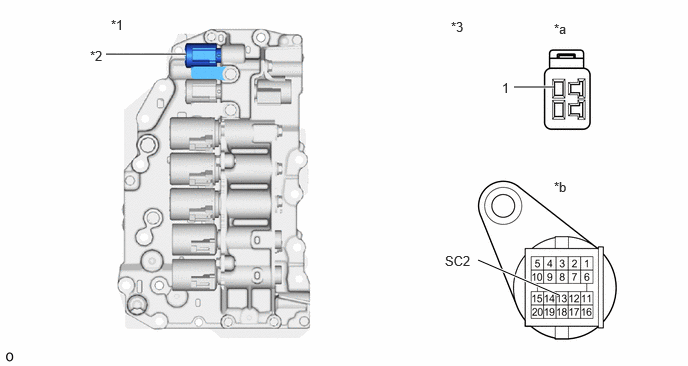

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Transmission Valve Body Assembly	*2	Shift Solenoid Valve SC2
   *3	Transmission Wire	-	-
   *a	Shift Solenoid Valve Side	*b	Wire Harness Connector Side

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   1 (shift solenoid valve side) or 13 (SC2) (wire harness connector side) - All other terminals	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

   Post-procedure1

4. None

Result:

NG

REPLACE TRANSMISSION WIRE

Refer to REMOVAL [03/2023 - 09/2024] , or refer to REMOVAL [09/2024 - ]

Result:

OK

See step  5

HINT:

Refer to REMOVAL [03/2023 - ]

Result

Result:

NEXT

PERFORM REGISTRATION AND INITIALIZATION

for Registration: Refer to REGISTRATION [03/2023 - ]

for Initialization: Refer to INITIALIZATION [03/2023 - ]
