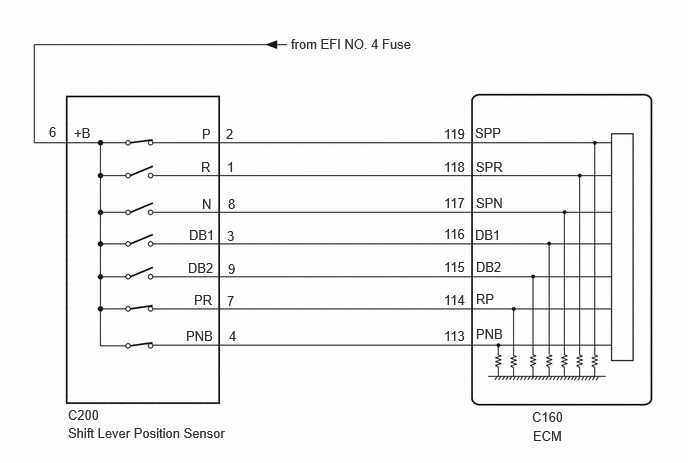

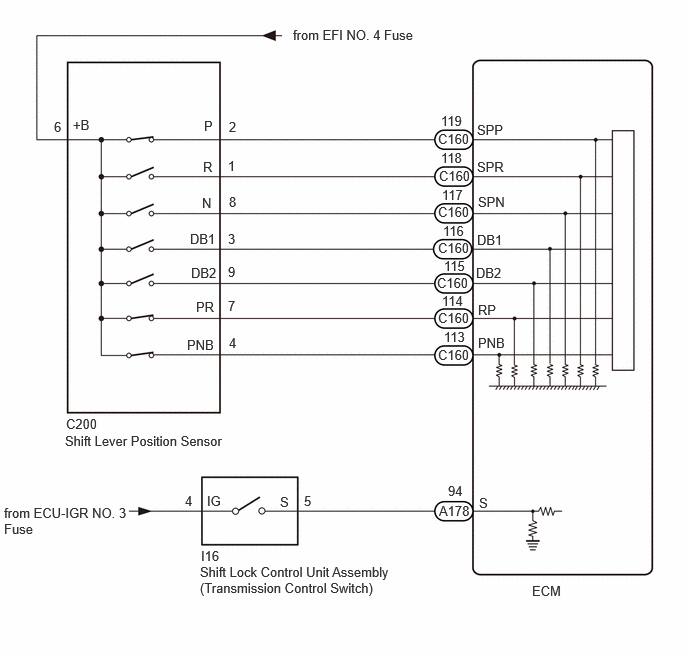

DTC P0705-62: Transmission Range Sensor "A" Signal Compare Failure [03/2023 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2025 Toyota Corolla and 2024 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
