Steering Pad Switch Circuit [03/2023 - ]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2025 Toyota GR Corolla, 2025 Toyota Corolla, 2024 Toyota GR Corolla, 2024 Toyota Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. for M20A-FKS with K120
    GTY1121160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

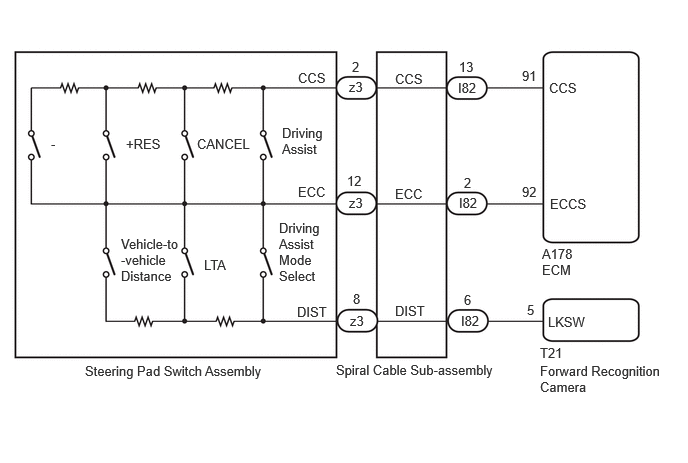

  2. for M20A-FKS with K121
    GTY1180471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. for G16E-GTS
    GTY1122176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. for HV Model
    GTY1121159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
