Removal [09/2022 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2025 Toyota GR Corolla, 2025 Toyota Corolla, 2024 Toyota GR Corolla, 2024 Toyota Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE HEADLIGHT ASSEMBLY LH

    Refer to REMOVAL [09/2022 - ]

  2. REMOVE VEHICLE APPROACHING SPEAKER ASSEMBLY

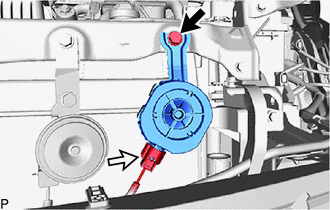

    1. Remove the bolt.
      GTY1121210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the vehicle approaching speaker assembly.
