Components [09/2022 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2025 Toyota GR Corolla, 2025 Toyota Corolla, 2024 Toyota GR Corolla, 2024 Toyota Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

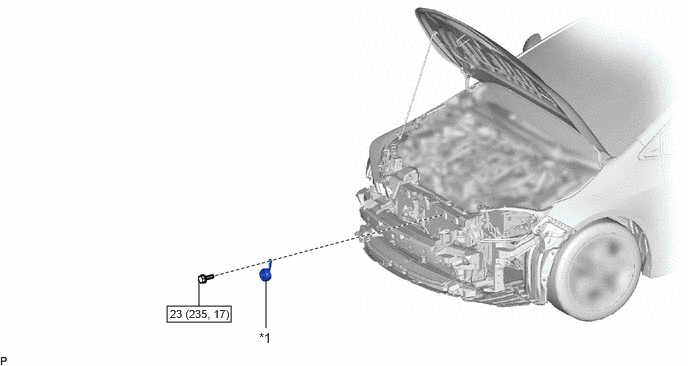

Fig 1: Vehicle Approaching Speaker Replacement Components With Torque Specifications
GTY1120523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 VEHICLE APPROACHING SPEAKER ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -
