Removal [09/2024 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2025 Toyota GR Corolla, 2025 Toyota Corolla, 2024 Toyota GR Corolla, 2024 Toyota Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 1
REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 3
REMOVE FRONT DOOR SCUFF PLATE RH
HINT:

Use the same procedure as for the LH side.

Refer to PROCEDURE - Step 12
REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.

Refer to PROCEDURE - Step 13
DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
Refer to PROCEDURE - Step 26
REMOVE NO. 2 INSTRUMENT SIDE PANEL
Refer to PROCEDURE - Step 27
REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 8 Inch Display)
Refer to PROCEDURE - Step 17
REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 10.5 Inch Display)
Refer to PROCEDURE - Step 18
REMOVE AIR CONDITIONING CONTROL ASSEMBLY
Refer to PROCEDURE - Step 3
REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY
Refer to PROCEDURE - Step 20
REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
Refer to PROCEDURE - Step 29
REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Refer to PROCEDURE - Step 30
REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 31
REMOVE ECU INTEGRATION BOX RH
Refer to PROCEDURE - Step 15

REMOVE VEHICLE APPROACHING SPEAKER CONTROLLER

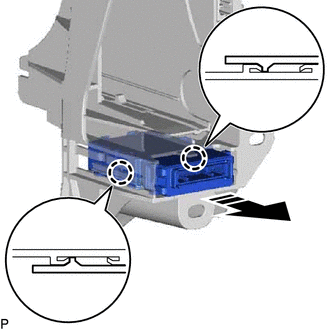

Disengage the 2 claws to remove the vehicle approaching speaker controller as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

NOTE:

If the ECU integration box RH is deformed or damaged, replace it.
Do not bend the 2 claws more than necessary.
