Components [09/2022 - 09/2024]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2025 Toyota GR Corolla, 2025 Toyota Corolla, 2024 Toyota GR Corolla, 2024 Toyota Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

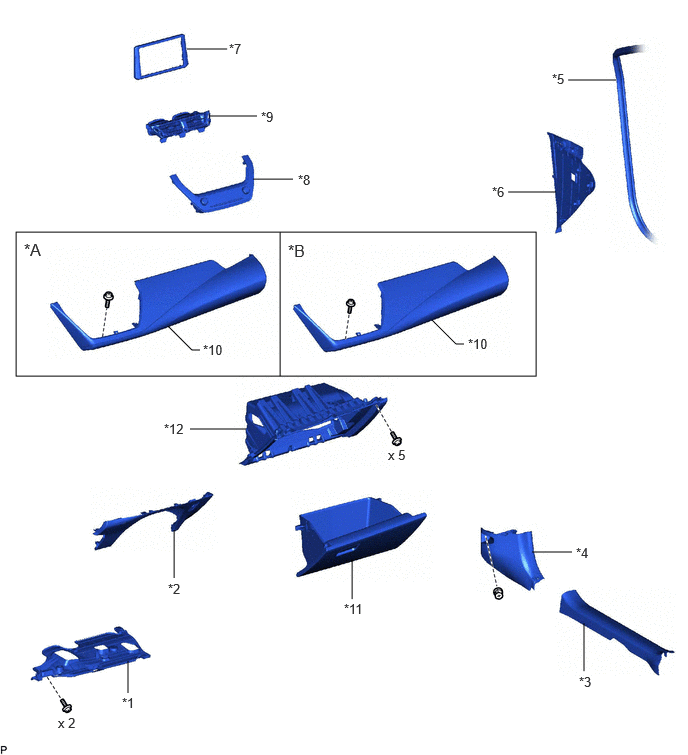

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
for Type A |
*B |
for Type B |
| *1 |
NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
*2 |
LOWER CENTER INSTRUMENT PANEL FINISH PANEL |
| *3 |
FRONT DOOR SCUFF PLATE RH |
*4 |
COWL SIDE TRIM SUB-ASSEMBLY RH |
| *5 |
FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
*6 |
NO. 2 INSTRUMENT SIDE PANEL |
| *7 |
CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY |
*8 |
AIR CONDITIONING CONTROL ASSEMBLY |
| *9 |
CENTER INSTRUMENT PANEL REGISTER ASSEMBLY |
*10 |
INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY |
| *11 |
GLOVE COMPARTMENT DOOR ASSEMBLY |
*12 |
LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL |

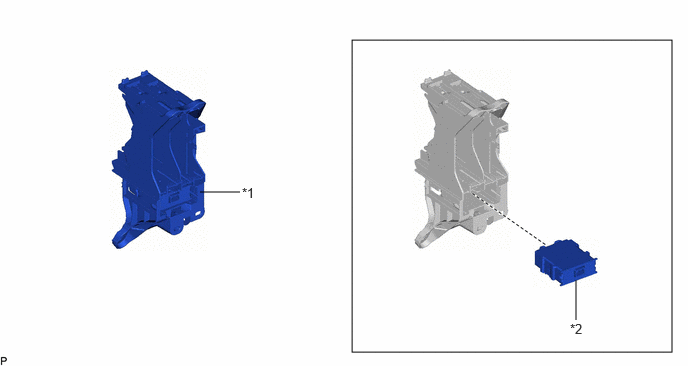

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
ECU INTEGRATION BOX RH |
*2 |
VEHICLE APPROACHING SPEAKER CONTROLLER |
