Speed Signal Circuit [09/2022 - 11/2022]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2025 Toyota GR Corolla, 2025 Toyota Corolla, 2024 Toyota GR Corolla, 2024 Toyota Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

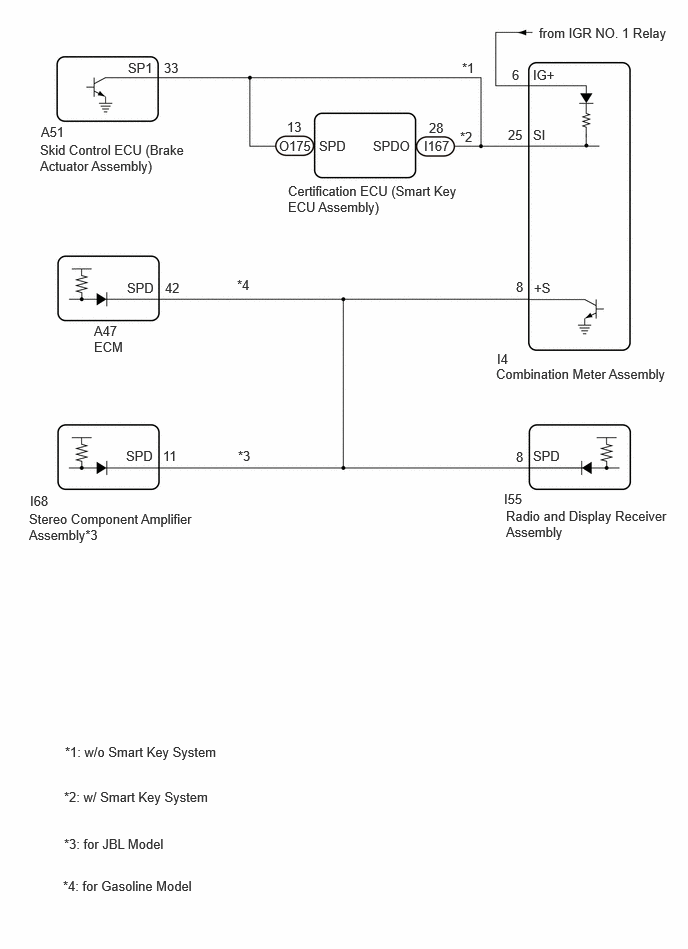

for TMC Made

GTY1250729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

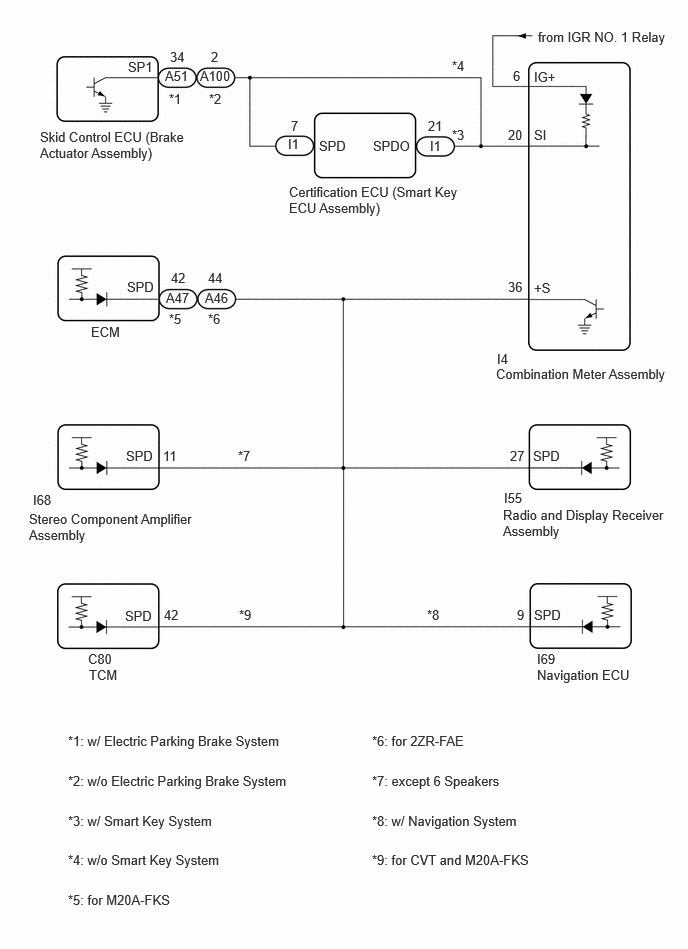

for TMMMS Made

GTY1251709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
