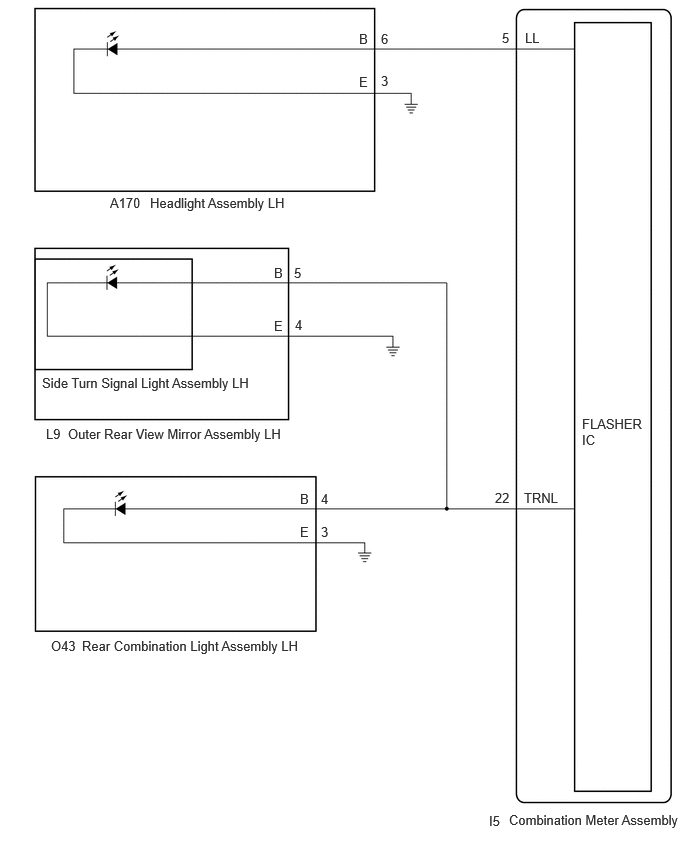

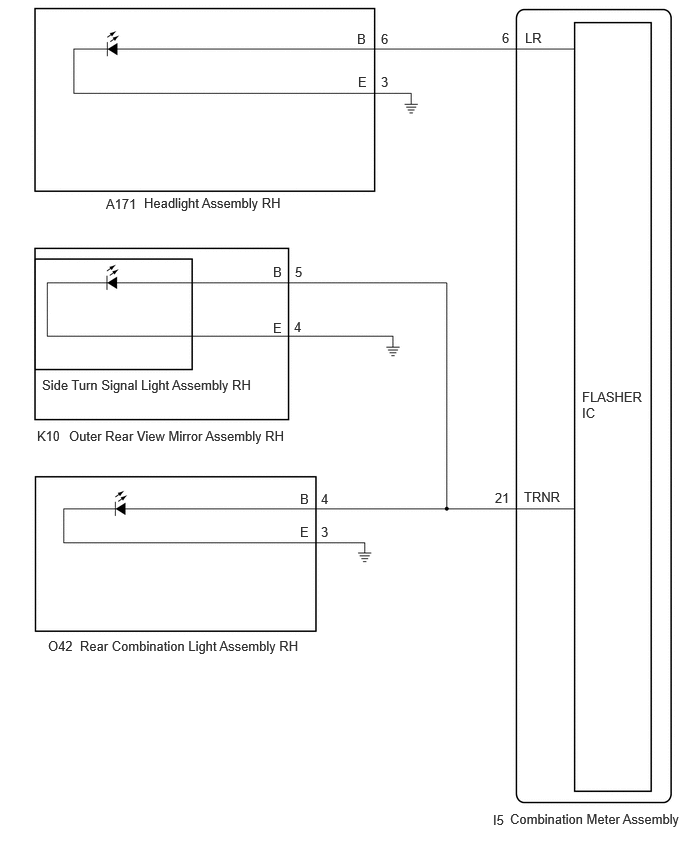

DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [09/2022 - ]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2025 Toyota GR Corolla, 2025 Toyota Corolla, 2024 Toyota GR Corolla, 2024 Toyota Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
