Parts Location [11/2022 - ]: Illustration

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2025 Toyota GR Corolla, 2025 Toyota Corolla, 2024 Toyota GR Corolla, 2024 Toyota Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

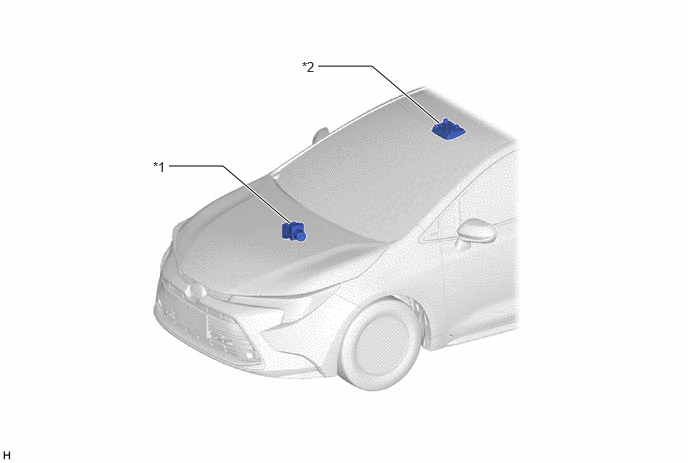

GTY1116540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BRAKE ACTUATOR ASSEMBLY
- SKID CONTROL ECU		 *2 MAP LIGHT ASSEMBLY
- PASSENGER AIRBAG ON/OFF INDICATOR

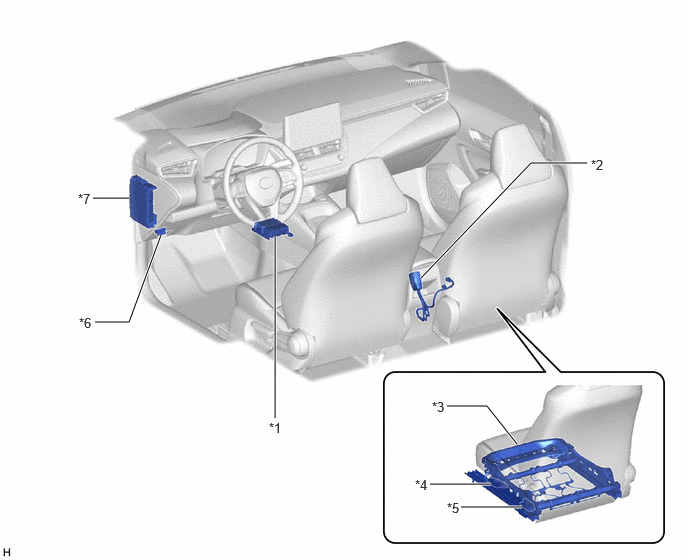

GTY1114149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AIRBAG SENSOR ASSEMBLY *2 FRONT SEAT INNER BELT ASSEMBLY RH
- PASSENGER SEAT BUCKLE SWITCH
*3 SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY RH *4 FRONT OCCUPANT CLASSIFICATION SENSOR LH
*5 REAR OCCUPANT CLASSIFICATION SENSOR LH *6 DLC3
*7 POWER DISTRIBUTION BOX ASSEMBLY
- A/BAG-IGR FUSE		 - -
