Parts Location [09/2022 - 11/2022]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2025 Toyota GR Corolla, 2025 Toyota Corolla, 2024 Toyota GR Corolla, 2024 Toyota Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

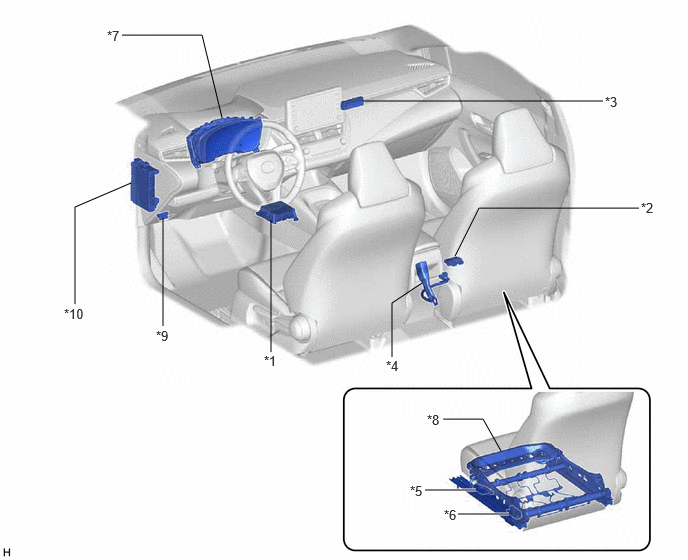

| *1 | AIRBAG SENSOR ASSEMBLY - ACCELERATION SENSOR |
*2 | OCCUPANT DETECTION ECU |
| *3 | TELLTALE LIGHT ASSEMBLY - PASSENGER AIRBAG ON/OFF INDICATOR |
*4 | FRONT SEAT INNER BELT ASSEMBLY RH - FRONT PASSENGER SIDE BUCKLE SWITCH |
| *5 | FRONT OCCUPANT CLASSIFICATION SENSOR LH | *6 | REAR OCCUPANT CLASSIFICATION SENSOR LH |
| *7 | COMBINATION METER ASSEMBLY - SRS WARNING LIGHT |
*8 | SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY RH |
| *9 | DLC3 | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - A/BAG-IG2 FUSE - ECU-IG1 NO. 4 FUSE |
