Section 252 (Pre-Collision System (Early 2023, TMMMS) - Diagnostics - Introduction)
>>
PRE-COLLISION SYSTEM (for TMMMS Made)
>>

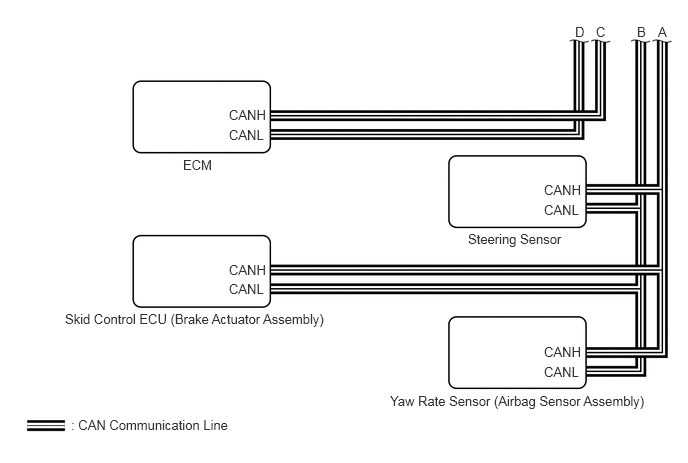

System Diagram [09/2022 - 11/2022]
>>

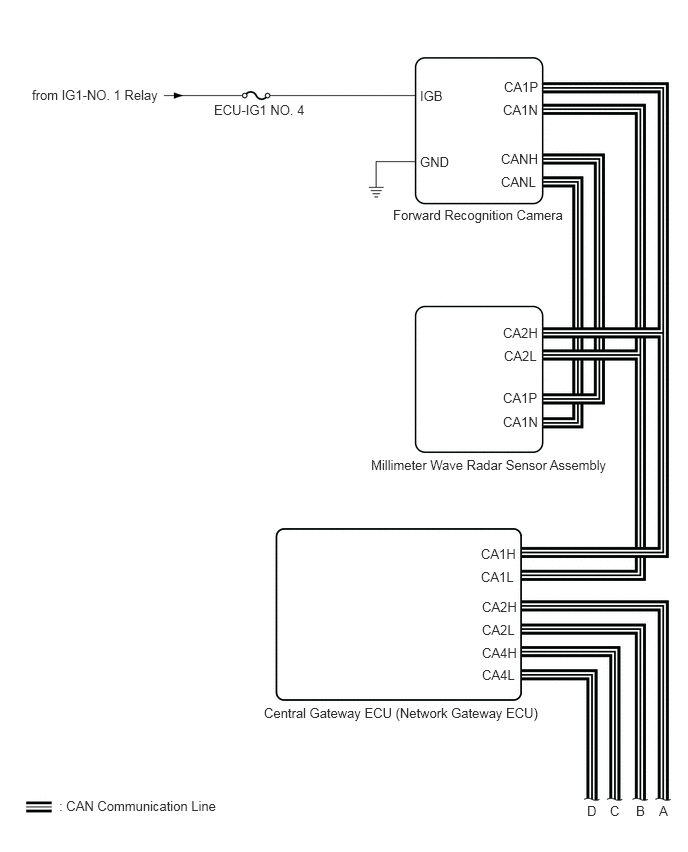

System Diagram [09/2022 - 11/2022]
System Diagram [09/2022 - 11/2022]
WARNING:
This page is about a different car, the 2023 Toyota GR Corolla and 2023 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
