Parts Location [09/2024 - ]: Illustration
WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2025 Toyota Corolla, 2024 Toyota GR Corolla, and 2024 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

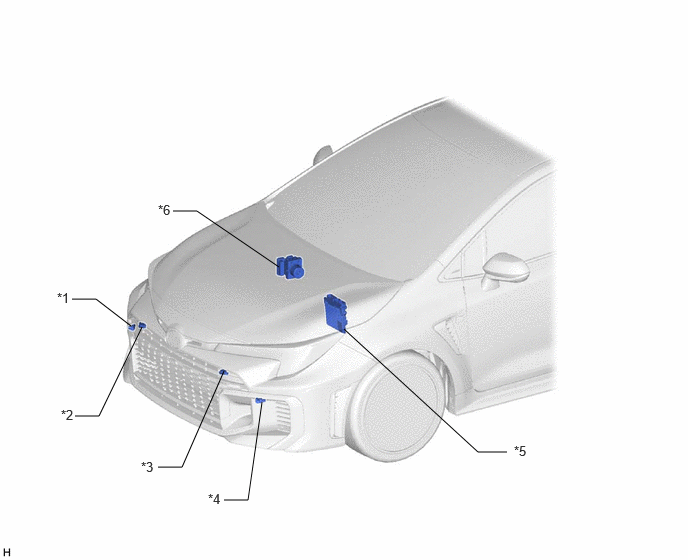

| *1 | FRONT CORNER ULTRASONIC SENSOR RH | *2 | FRONT CENTER ULTRASONIC SENSOR RH |
| *3 | FRONT CENTER ULTRASONIC SENSOR LH | *4 | FRONT CORNER ULTRASONIC SENSOR LH |
| *5 | ECM | *6 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |

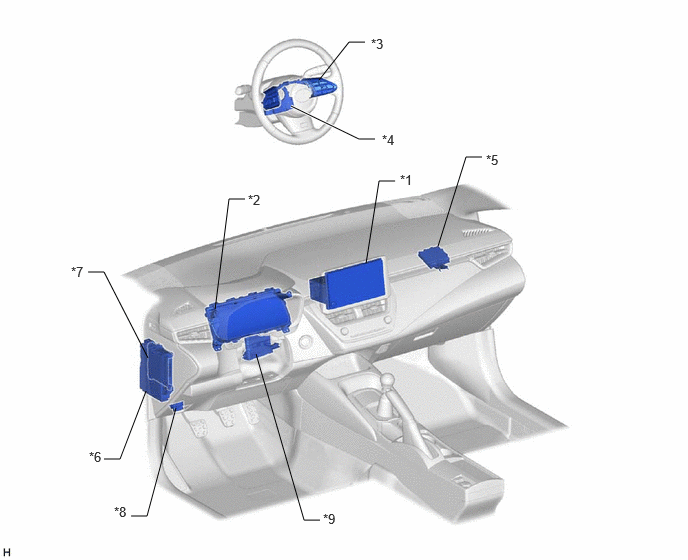

| *1 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *2 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY - CLEARANCE SONAR OFF INDICATOR - METER BUZZER |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | STEERING SENSOR |
| *5 | CLEARANCE WARNING ECU ASSEMBLY | *6 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-IGR NO. 3 FUSE |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | DLC3 |
| *9 | AIR CONDITIONING AMPLIFIER ASSEMBLY | - | - |
