Components [09/2022 - 11/2022]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2025 Toyota GR Corolla, 2025 Toyota Corolla, 2024 Toyota GR Corolla, 2024 Toyota Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

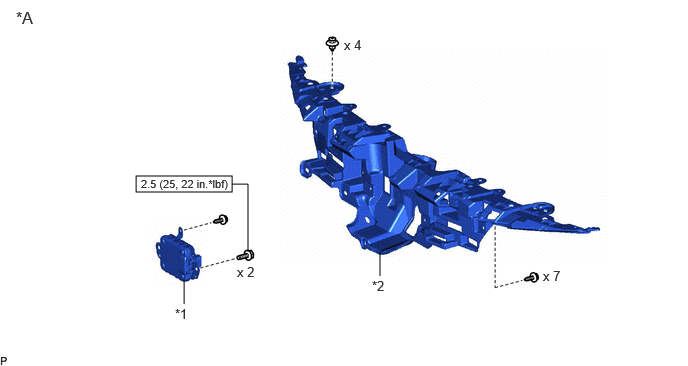

Fig 1: Millimeter Wave Radar Sensor (For TMC Made) Replacement Components With Torque Specifications (1 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Hatchback except GR | - | - |
| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *2 | INNER RADIATOR GRILLE |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

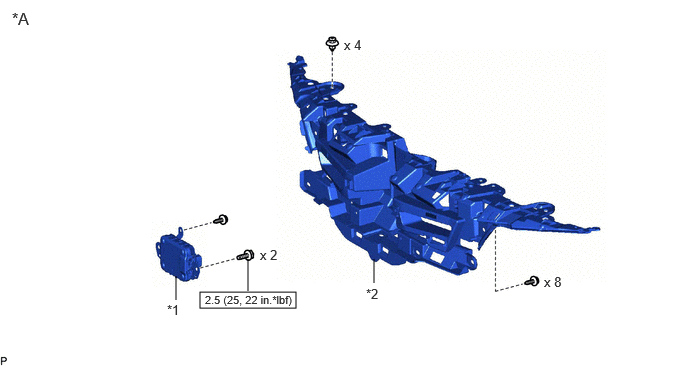

Fig 2: Millimeter Wave Radar Sensor (For TMC Made) Replacement Components With Torque Specifications (2 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Hatchback, GR | - | - |
| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *2 | INNER RADIATOR GRILLE |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

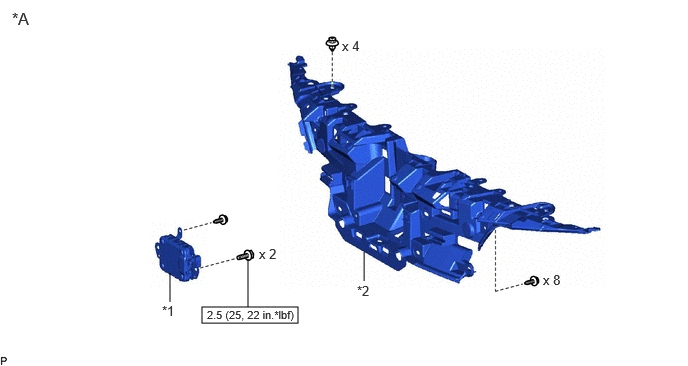

Fig 3: Millimeter Wave Radar Sensor (For TMC Made) Replacement Components With Torque Specifications (3 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Sedan | - | - |
| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *2 | INNER RADIATOR GRILLE |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
