Removal [11/2022 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2025 Toyota GR Corolla, 2025 Toyota Corolla, 2024 Toyota GR Corolla, 2024 Toyota Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 2 FORWARD RECOGNITION COVER

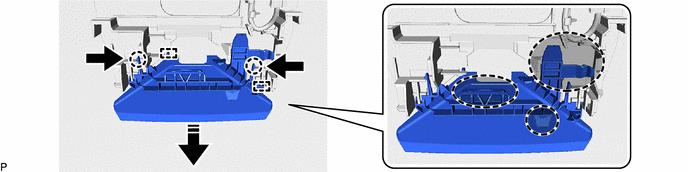

Pull the No. 2 forward recognition cover in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 claws.

NOTE:

If these claws are disengaged separately, they may break. Insert a molding remover between them and pull it down to disengage the claws simultaneously.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Remove in this Direction (1)
	Remove in this Direction (2)

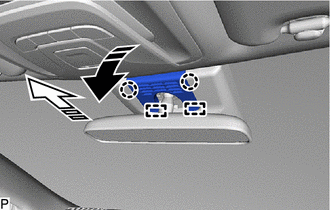

Pull the No. 2 forward recognition cover in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove the No. 2 forward recognition cover.

REMOVE NO. 1 FORWARD RECOGNITION COVER

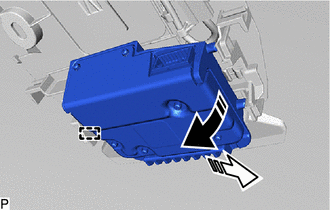

Disengage the 2 clips and 2 guides to remove the No. 1 forward recognition cover as shown in the illustration.

NOTE:

To avoid damaging the guides, always slide the No. 1 forward recognition cover parallel to the windshield glass.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE FORWARD RECOGNITION CAMERA

NOTE:

If the forward recognition camera has been struck or dropped, replace it with a new one.

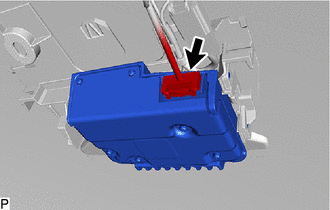

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not pull the harness forcibly when disconnecting the connector.

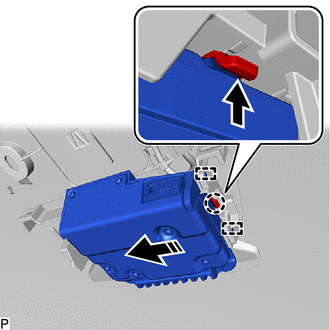

Disengage the claw and 2 guides as shown in the illustration.

NOTE:

Do not touch the camera lens.
If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Push
	Remove in this Direction

Disengage the guide to remove the forward recognition camera as shown in the illustration.

NOTE:

Do not touch the camera lens.
If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.

	Remove in this Direction (1)
	Remove in this Direction (2)

REMOVE FORWARD RECOGNITION HOOD

HINT:

Perform this procedure only when replacement of the forward recognition hood is necessary.

NOTE:

If the inner surface of the windshield glass in the area in front of the forward recognition camera is dirty, remove the forward recognition hood, clean the glass, then reinstall the forward recognition hood and forward recognition camera.

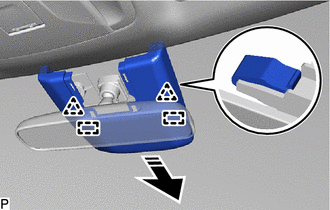

Disengage the 2 claws as shown in the illustration.

	Push		Remove in this Direction
	Do not touch	-	-

As shown in the illustration, slide the 2 claws of the 2 guides parallel to the surface of the glass to remove the forward recognition hood.
NOTE:
Do not touch the areas shown in the illustration as application of load may cause bending.
