How To Connect Or Disconnect Airbag Connector [11/2022 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2025 Toyota GR Corolla, 2025 Toyota Corolla, 2024 Toyota GR Corolla, 2024 Toyota Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. TYPES OF AIRBAG CONNECTOR
    1. Types of Connector
      TYPE Shape (Example)
      Pull Up Type
      GTY831013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2-Step Lock Type
      GTY792223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Slide Lock Type
      GTY792169GTY792172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002
      GTY792169GTY792172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT OR CONNECT AIRBAG CONNECTOR (for Pull Up Type)

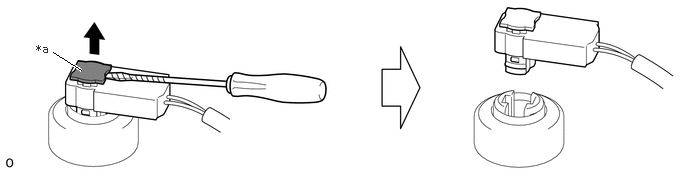

    1. Disconnect the connector.
      1. Using a screwdriver with its tip wrapped with protective tape, release the connector locking button.
      2. Disconnect the airbag connector.
        GTY805410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Connector Locking Button - -

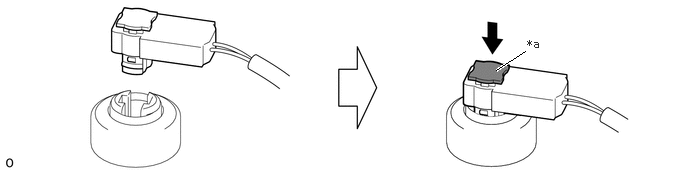

    2. Connect the connector.
      1. Connect the airbag connector.
      2. Push in the connector locking button to install the connector.
        GTY827130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Connector Locking Button - -
  3. DISCONNECT OR CONNECT AIRBAG CONNECTOR (for 2-Step Lock Type)

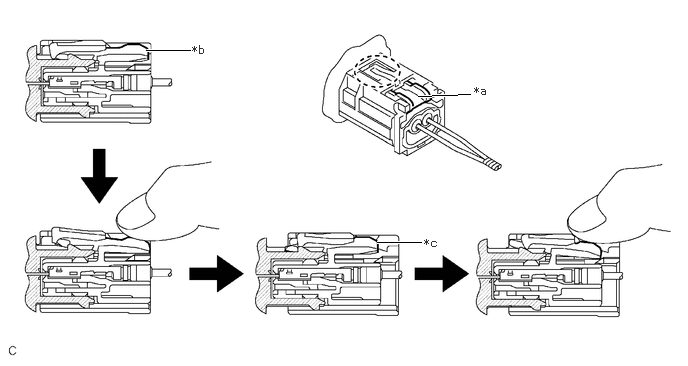

    1. Disconnect the connector.
      1. Push down the release button and slide the sides of the connector. (At this time, the connector cannot be disconnected yet.)
        NOTE:
        • Do not pull the wire harness.
        • Pushing down on the top of the connector will prevent the lock from being released, so hold the sides of the connector.
      2. Check that the position of the release button is as shown in the illustration.
      3. Push down the release button and slide the connector again to disconnect the airbag connector.
        GTY1108558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Release Button *b Position when Locked
        *c Position when Released - -

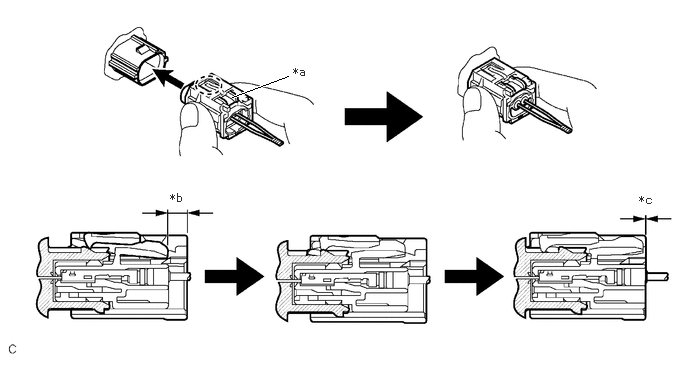

    2. Connect the connector.
      1. Before connecting the connector, check that the position of the release button is as shown in the illustration.
      2. While holding the sides of the connector, slide the connector in the direction shown by the arrow in the illustration until a click sound is heard to connect the airbag connector, and check that the release button is in its original position.
        GTY1105151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Release Button *b Position when Released
        *c Position when Locked - -
        NOTE:
        • Slide the connector in straight to connect it. Be careful not to pry the connector.
        • To prevent deformation of the connector and possible damage to the partial engagement prevention mechanism, do not press down on the top surface of the connector when connecting it. Be sure to hold the connector by the sides.
  4. DISCONNECT OR CONNECT AIRBAG CONNECTOR (for Slide Lock Type)

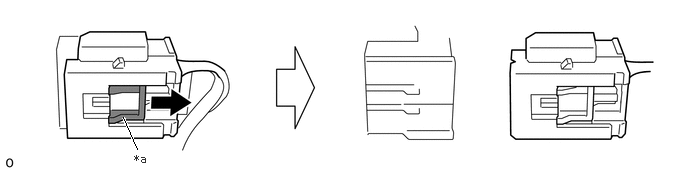

    1. Disconnect the connector.
      1. Slide the slider in the direction shown by the arrow to release the lock.
      2. Disconnect the airbag connector.
        GTY819758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Slider - -

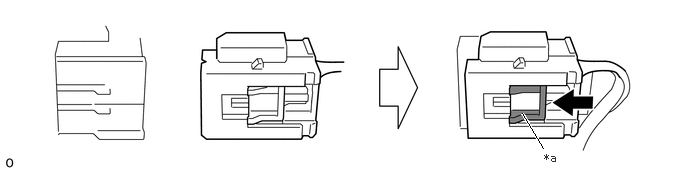

    2. Connect the connector.
      1. Connect the airbag connector.

        HINT:

        If the slider is not in the lock position, the connector is not completely connected. Disconnect the connector, check the connector, spiral cable with sensor sub-assembly terminals and connector housings for deformation or foreign matter, and then reconnect the connector.

      2. Slide the slider in the direction shown by the arrow to lock it, and check that the slider is in the lock position.
        GTY792696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Slider - -
