System Diagram [09/2022 - ]

WARNING: This page is about a different car, the 2025 Toyota Corolla, 2024 Toyota Corolla, 2023 Toyota Corolla, 2022 Toyota Corolla, and 2021 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

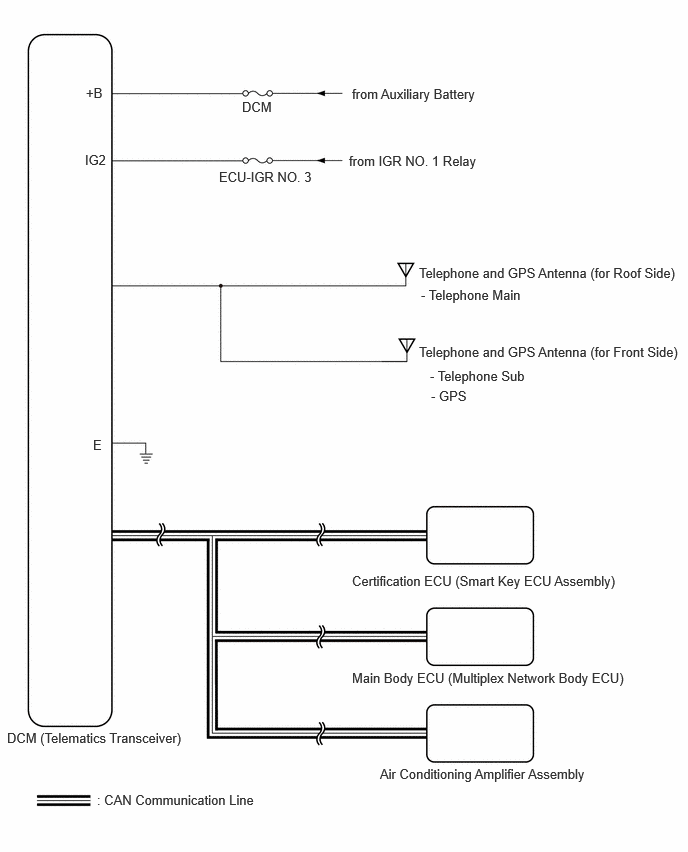

GTY1121120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

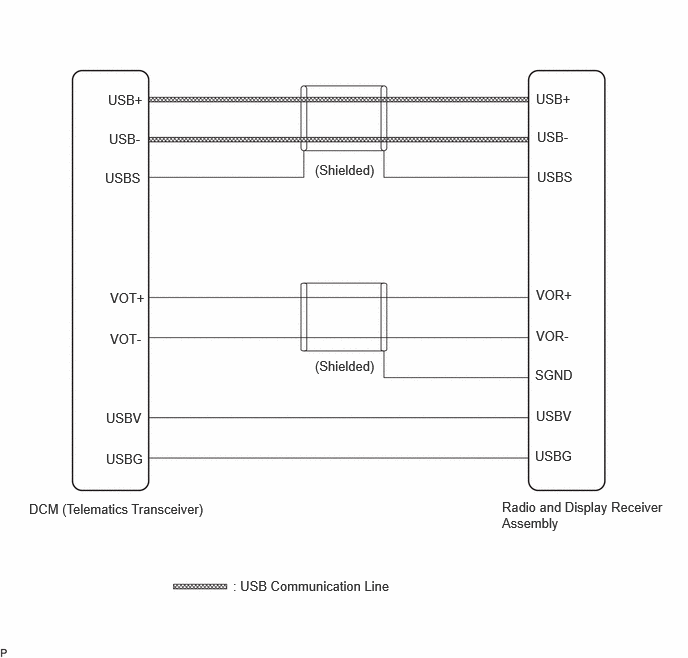

GTY1121677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
