Parts Location [09/2022 - ]: Illustration
WARNING: This page is about a different car, the 2025 Toyota Corolla, 2024 Toyota Corolla, 2023 Toyota Corolla, 2022 Toyota Corolla, and 2021 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

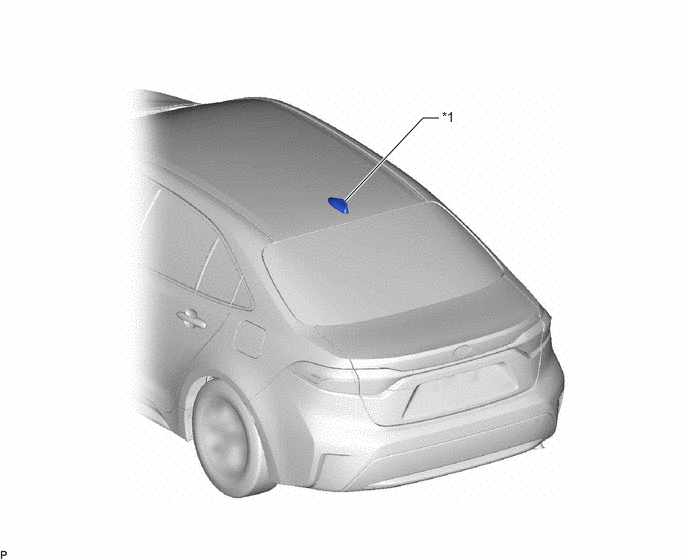

| *1 |
TELEPHONE AND GPS ANTENNA (for Roof Side)
- Telephone Main |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

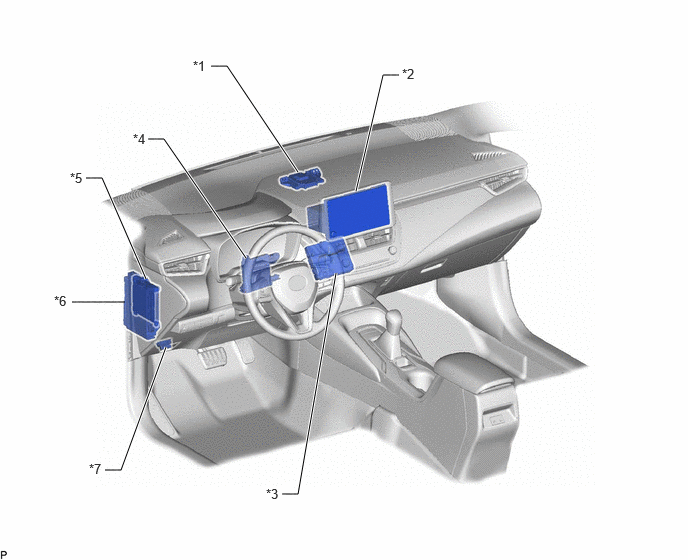

| *1 |
TELEPHONE AND GPS ANTENNA (for Front Side)
- Telephone Sub
- GPS |
*2 |
RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *3 |
DCM (TELEMATICS TRANSCEIVER) |
*4 |
AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 |
MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
*6 |
POWER DISTRIBUTION BOX ASSEMBLY
- DCM FUSE
- ECU-IG2 NO. 3 FUSE |
| *7 |
DLC3 |
- |
- |
