System Diagram [11/2022 - 09/2024]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2025 Toyota GR Corolla, 2025 Toyota Corolla, 2024 Toyota GR Corolla, 2024 Toyota Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Refer to System Diagram of CAN Communication System.

Refer to SYSTEM DIAGRAM [11/2022 - 03/2023] , or refer to SYSTEM DIAGRAM [03/2023 - 08/2023] , or refer to SYSTEM DIAGRAM [08/2023 - 09/2024]

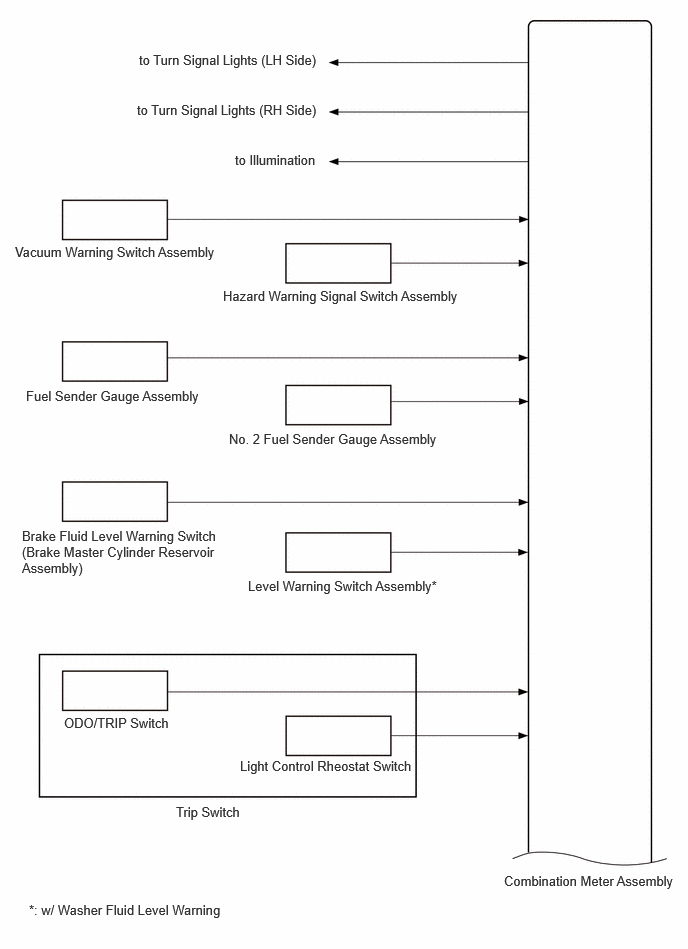

GTY1119718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

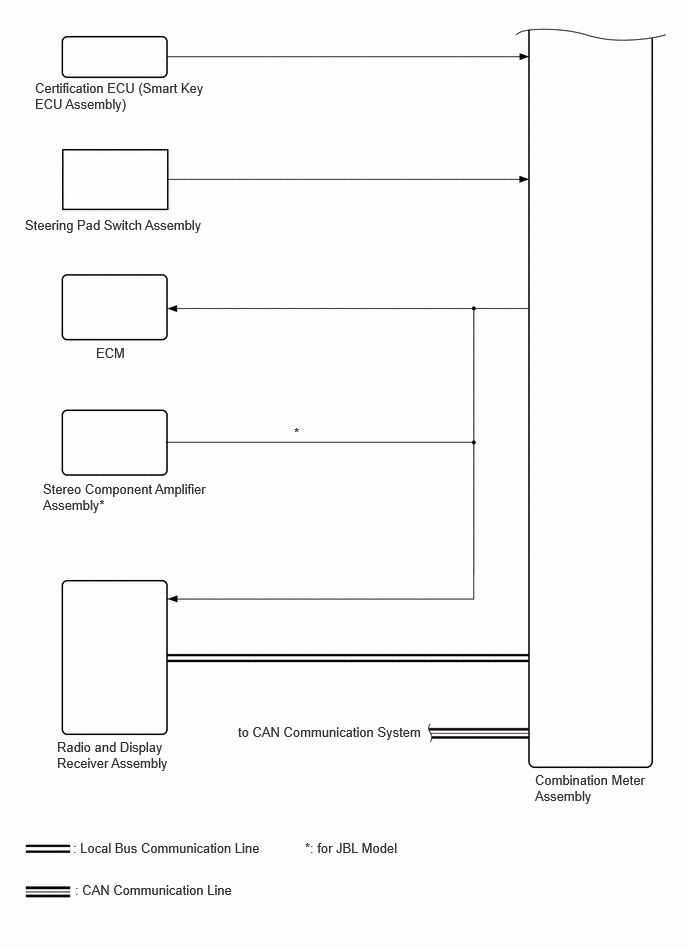

GTY1121285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
