Installation [04/2018 -]: Procedure

  1. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Install the shift lever knob sub-assembly to the transmission floor shift assembly.

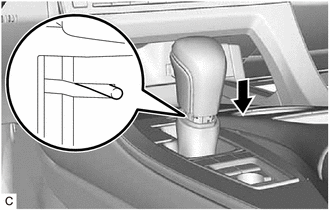

      GTY841335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 claws to connect the shifting hole cover sub-assembly as shown in the illustration.

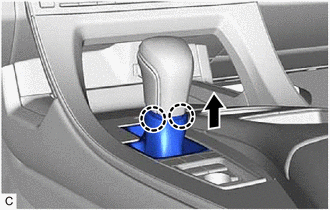

      GTY841336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Make sure that the shifting hole cover sub-assembly does not twist after installing the shift lever knob sub-assembly.
