Installation [04/2018 -]: Procedure
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- INSTALL STEERING COLUMN ASSEMBLY NOTE:
Make sure that the wire harness is not interfering with the steering column assembly.
- Install the steering column assembly with the bolt and 2 nuts.
Torque: 36 N*m (367 kgf*cm, 27 ft.*lbf)
- Connect each connector and engage each wire harness clamp to the steering column assembly.
- Install the steering column assembly with the bolt and 2 nuts.
- INSTALL STEERING INTERMEDIATE SHAFT ASSEMBLY
- INSTALL STEERING COLUMN HOLE COVER
- Install the steering column hole cover with the 2 clips.
- Install the clip.
- Return the floor carpet.
- CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY (for Gasoline Model)
Refer to PROCEDURE - Step 11 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 13 [08/2020 -]
- CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY (for HV Model)
Refer to PROCEDURE - Step 11
- INSTALL FRONT WHEEL LH
Refer to PROCEDURE - Step 1

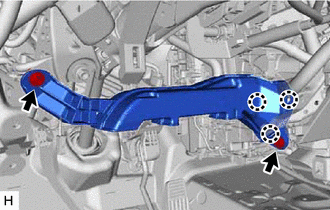

- INSTALL NO. 1 AIR DUCT
- INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to INSTALLATION [04/2018 - 08/2020] , or refer to INSTALLATION [08/2020 -]
- INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY NOTE:
- Do not remove/install the spiral cable with sensor sub-assembly with the auxiliary battery connected and the engine switch (for Gasoline Model) or power switch (for HV Model) on (IG).
- Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the auxiliary battery connected and the engine switch (for Gasoline Model) or power switch (for HV Model) on (IG).
- Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.
- Using pliers, expand the clamp.

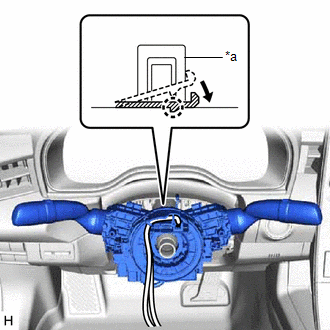

*a Clamp - While holding the clamp expanded, install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly and engage the claw.
- Return the clamp to its original position.
- Connect the connectors to the turn signal switch assembly with spiral cable sub-assembly.

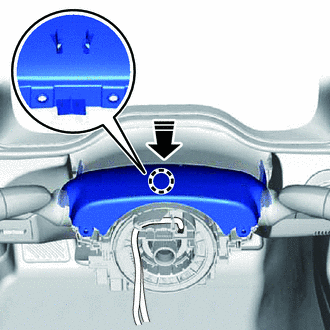

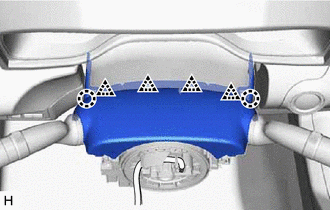

- INSTALL UPPER STEERING COLUMN COVER

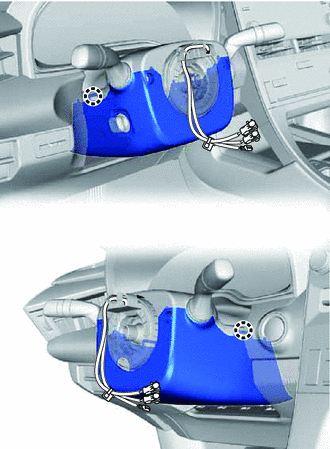

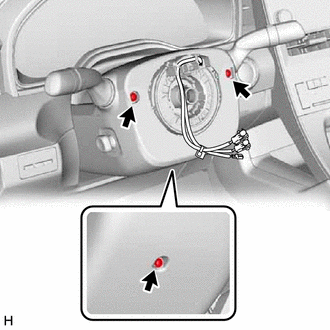

- INSTALL LOWER STEERING COLUMN COVER
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Refer to PROCEDURE - Step 9 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 9 [08/2020 -]
- INSTALL STEERING WHEEL ASSEMBLY
- CHECK STEERING WHEEL CENTER POINT
- INSTALL HORN BUTTON ASSEMBLY
Refer to INSTALLATION [04/2018 - 08/2020] , or refer to INSTALLATION [08/2020 -]
- CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
- Set the auto tilt away function setting to the previous condition by changing the customize parameter.
for Gasoline Model: Refer to CUSTOMIZE PARAMETERS [04/2018 -]
for HV Model: Refer to CUSTOMIZE PARAMETERS [04/2018 -]
- Set the auto tilt away function setting to the previous condition by changing the customize parameter.
- PERFORM INITIALIZATION AND CALIBRATION (for Gasoline Model)
for Parking Assist Monitor System Initialization: Refer to INITIALIZATION [04/2018 -]
for Parking Assist Monitor System Calibration: Refer to CALIBRATION [04/2018 -]
for Panoramic View Monitor System Initialization: Refer to INITIALIZATION [04/2018 -]
for Panoramic View Monitor System Calibration: Refer to CALIBRATION [04/2018 -]
for Intelligent Clearance Sonar System Calibration: Refer to CALIBRATION [04/2018 -]
- PERFORM INITIALIZATION AND CALIBRATION (for HV Model)
for Parking Assist Monitor System Initialization: Refer to INITIALIZATION [04/2018 -]
for Parking Assist Monitor System Calibration: Refer to CALIBRATION [04/2018 -]
for Panoramic View Monitor System Initialization: Refer to INITIALIZATION [04/2018 -]
for Panoramic View Monitor System Calibration: Refer to CALIBRATION [04/2018 -]
for Intelligent Clearance Sonar System Calibration: Refer to CALIBRATION [04/2018 -]
