Installation [04/2018 - ]: Procedure

INSTALL AUXILIARY BATTERY

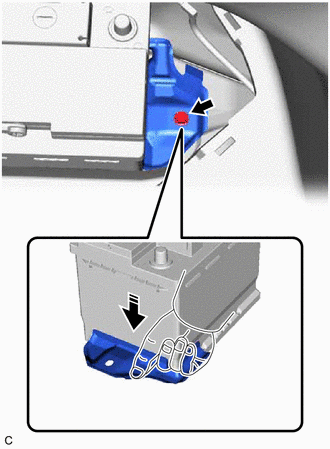

Install the No. 3 battery clamp with the bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Torque: 16.5 N*m (168 kgf*cm, 12 ft.*lbf)

Connect the battery hose to the auxiliary battery.
NOTE:
- Do not twist the battery hose.
- Push the battery hose onto the auxiliary battery until a click sound is heard.
Connect the cable to the positive (+) auxiliary battery terminal and tighten the nut.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
Engage the 2 claws to close the battery terminal connector cover.

CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
1. Connect the cable to the negative (-) auxiliary battery terminal and tighten the nut.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  NOTE:
  When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

  Refer to INITIALIZATION [04/2018 - 08/2020] , or refer to INITIALIZATION [08/2020 - 08/2021] , or refer to INITIALIZATION [08/2021 - ]
INSTALL LUGGAGE TRIM SERVICE HOLE COVER
1. Engage the 2 claws and install the luggage trim service hole cover.
