Pattern Select Switch Sport Mode Circuit [04/2018 - 08/2020]: Procedure
- READ VALUE USING TECHSTREAM (CAN BUS CHECK)
See step 2
Result
Result Proceed to All of the ECUs and sensors that are currently connected to the CAN communication system are displayed A None of the ECUs and sensors that are currently connected to the CAN communication system are displayed, or some of them are not displayed B Result:
B
GO TO CAN COMMUNICATION SYSTEM. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [04/2018 - ]
Result:
A
See step 2
- CHECK DTC OUTPUT (HEALTH CHECK)
See step 3
Result
Result Proceed to No DTCs are output A DTCs are output B Result:
B
GO TO DTC CHART. Refer to DIAGNOSTIC TROUBLE CODE CHART [04/2018 - 08/2020]
Result:
A
See step 3
- READ VALUE USING TECHSTREAM (SPORT MODE SWITCH, NORMAL MODE SWITCH)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Enter the following menus: Powertrain/Hybrid Control/Data List/Sport Mode Switch, Normal Mode Switch.
Powertrain > Hybrid Control > Data List
Tester Display Sport Mode Switch Normal Mode Switch - Read the value displayed on the Techstream.
Powertrain > Hybrid Control > Data List
Tester Display Measurement Item Range Normal Condition Sport Mode Switch Sport mode switch condition ON or OFF Sport mode switch being pushed and held: ON
Sport mode switch not operated: OFFNormal Mode Switch Normal mode switch condition ON or OFF Normal mode switch being pushed and held: ON
Normal mode switch not operated: OFFResult
Result Proceed to The Techstream display changes according to the switch (Sport mode, Normal mode) operation A The Techstream display does not change according to the switch (Sport mode, Normal mode) operation B - Turn the power switch off.
Result:
A
REPLACE HYBRID VEHICLE CONTROL ECU. Refer to REMOVAL [04/2018 - 08/2021]
Result:
B
See step 4
- INSPECT ELECTRIC PARKING BRAKE SWITCH ASSEMBLY (SPORT MODE, NORMAL MODE)
Refer to INSPECTION [04/2018 - ]
Result
Proceed to OK NG Result:
NG
REPLACE ELECTRIC PARKING BRAKE SWITCH ASSEMBLY. Refer to REMOVAL [04/2018 - ]
Result:
OK
See step 5
- CHECK HARNESS AND CONNECTOR (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY - BODY GROUND)
- Disconnect the G24 electric parking brake switch assembly connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Electric Parking Brake Switch Assembly)Standard Resistance
Tester Connection Condition Specified Condition G24-16 (GND1) - Body ground Always Below 1 Ω - Reconnect the G24 electric parking brake switch assembly connector.
Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 6
- CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - ELECTRIC PARKING BRAKE SWITCH ASSEMBLY)
- Disconnect the G46 and G47 hybrid vehicle control ECU connectors.
- Disconnect the G24 electric parking brake switch assembly connector.
- Measure the resistance according to the value(s) in the table below.

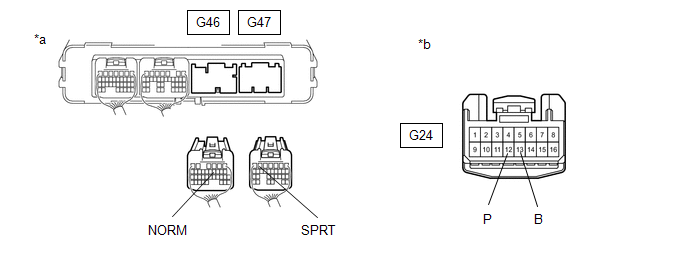

*a Rear view of wire harness connector
(to Hybrid Vehicle Control ECU)*b Front view of wire harness connector
(to Electric Parking Brake Switch Assembly)Standard Resistance
Tester Connection Condition Specified Condition G47-6 (SPRT) - G24-12 (P) Always Below 1 Ω G47-6 (SPRT) or G24-12 (P) - Body ground Always 10 kΩ or higher G46-10 (NORM) - G24-13 (B) Always Below 1 Ω G46-10 (NORM) or G24-13 (B) - Body ground Always 10 kΩ or higher - Reconnect the G24 electric parking brake switch assembly.
- Reconnect the G46 and G47 hybrid vehicle control ECU connectors.
Result
Proceed to OK NG
Result:
OK
REPLACE HYBRID VEHICLE CONTROL ECU. Refer to REMOVAL [04/2018 - 08/2021]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
