Pattern Select Switch EV Mode Circuit [04/2018 - 08/2020]: Procedure
- ASK ABOUT VEHICLE CONDITION
- Check if a buzzer sounded and a message was displayed on the multi-information display when attempting to enter EV drive mode.
Result
Result Proceed to No buzzer sounded and no message was displayed on multi-information display A A buzzer sounded and a message was displayed on multi-information display B HINT:
If a buzzer sounds and a message is displayed on the multi-information display, one or more of the EV drive mode entry conditions have not been met.
Result:
B
END
Result:
A
See step 2
- Check if a buzzer sounded and a message was displayed on the multi-information display when attempting to enter EV drive mode.
- READ VALUE USING TECHSTREAM (CAN BUS CHECK)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Turn the Techstream on.
- Enter the following menus: System Select/CAN Bus Check.
CAN Bus Check
Result
Result Proceed to All of the ECUs and sensors that are currently connected to the CAN communication system are displayed A None of the ECUs and sensors that are currently connected to the CAN communication system are displayed, or some of them are not displayed B - Turn the power switch off.
Result:
B
. CAN COMMUNICATION SYSTEM. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [04/2018 - ]
Result:
A
See step 3
- CHECK DTC OUTPUT (HEALTH CHECK)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Turn the Techstream on.
- Enter the following menus: System Select/Health Check.
- Check for DTCs.
Result
Result Proceed to No DTCs are output A DTCs are output B - Turn the power switch off.
Result:
B
GO TO DTC CHART. Refer to DIAGNOSTIC TROUBLE CODE CHART [04/2018 - 08/2020]
Result:
A
See step 4
- READ VALUE USING TECHSTREAM (EV MODE, EV MODE SWITCH)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Powertrain/Hybrid Control/Data List/EV Mode, EV Mode Switch.
Powertrain > Hybrid Control > Data List
Tester Display EV Mode EV Mode Switch - Read the values displayed on the Techstream.
Powertrain > Hybrid Control > Data List
Tester Display Measurement Item Range Normal Condition EV Mode EV drive mode transition availability ON or OFF In EV drive mode: ON EV Mode Switch EV drive mode switch condition ON or OFF EV drive mode switch being pushed and held: ON
EV drive mode switch not operated: OFFResult
Result Proceed to The display changes according to the EV drive mode switch operation A The display does not change according to the EV drive mode switch operation B - Turn the power switch off.
Result:
A
GO TO PROBLEM SYMPTOMS TABLES. Refer to PROBLEM SYMPTOMS TABLE [04/2018 - 08/2020]
Result:
B
See step 5
- INSPECT EV DRIVE MODE SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY)
Refer to INSPECTION [04/2018 - ]
Result
Proceed to OK NG Result:
NG
REPLACE ELECTRIC PARKING BRAKE SWITCH ASSEMBLY. Refer to REMOVAL [04/2018 - ]
Result:
OK
See step 6
- CHECK HARNESS AND CONNECTOR (EV DRIVE MODE SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY) - BODY GROUND)
- Disconnect the G24 EV drive mode switch (electric parking brake switch assembly) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to EV Drive Mode Switch (Electric Parking Brake Switch Assembly))Standard Resistance
Tester Connection Condition Specified Condition G24-16 (GND1) - Body ground Always Below 1 Ω - Reconnect the G24 EV drive mode switch (electric parking brake switch assembly) connector.
Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 7
- CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - EV DRIVE MODE SWITCH (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY))
- Disconnect the G47 hybrid vehicle control ECU connector.
- Disconnect the G24 EV drive mode switch (electric parking brake switch assembly) connector.
- Measure the resistance according to the value(s) in the table below.

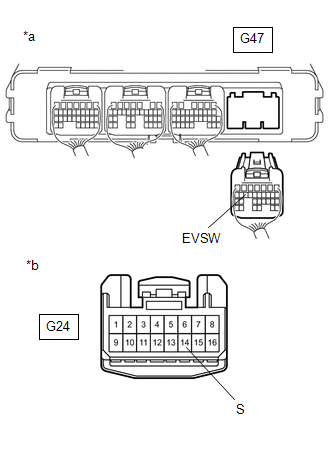

*a Rear view of wire harness connector
(to Hybrid Vehicle Control ECU)*b Front view of wire harness connector
(to EV Drive Mode Switch (Electric Parking Brake Switch Assembly))Standard Resistance
Tester Connection Condition Specified Condition G47-15 (EVSW) - G24-14 (S) Always Below 1 Ω G47-15 (EVSW) or G24-14 (S) - Body ground Always 10 kΩ or higher - Reconnect the G24 EV drive mode switch (electric parking brake switch assembly) connector.
- Reconnect the G47 hybrid vehicle control ECU connector.
Result
Proceed to OK NG
Result:
OK
REPLACE HYBRID VEHICLE CONTROL ECU. Refer to REMOVAL [04/2018 - 08/2021]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
