DTC P0ABF-2A: Hybrid/EV Battery Current Sensor "A" Signal Stuck In Range [04/2018 - 08/2020]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Enter the following menus: Powertrain/Hybrid Control/Trouble Codes.
4. Check and record any HV system DTCs and freeze frame data.

   Powertrain > Hybrid Control > Trouble Codes

   Result

   Result	Proceed to
   Only DTC P0ABF-2A is output or DTC P0ABF-2A and DTCs other than those in the following table are output.	A
   DTC P0ABF-2A and any of the DTCs in the following table are output at the same time.	B

   Relevant DTC
   P0A95-63	High Voltage Fuse Accumulated Load History
   P0ABF-11	Hybrid/EV Battery Current Sensor "A" Circuit Short to Ground
   P0ABF-15	Hybrid/EV Battery Current Sensor "A" Circuit Short to Auxiliary Battery or Open
   P0AFC-00	Hybrid/EV Battery Sensor Module
   P0AFC-96	Hybrid/EV Battery Sensor Module Component Internal Failure
   P1CBB-12	Hybrid/EV Battery Current Sensor Power Supply Circuit Short to Auxiliary Battery
   P1CBB-14	Hybrid/EV Battery Current Sensor Power Supply Circuit Short to Ground or Open
   P308A-12	Hybrid/EV Battery Voltage Sensor All Circuit Short to Auxiliary Battery
   P0B3B-14, P0B40-14, P0B45-14, P0B4A-14, P0B4F-14, P0B54-14, P0B59-14, P0B5E-14, P0B63-14, P0B68-14, P0B6D-14, P0B72-14	Hybrid/EV Battery Voltage Sensor "A - L" Circuit Short to Ground or Open

5. Turn the power switch off.

Result:

B

GO TO DTC CHART (HYBRID CONTROL SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [04/2018 - 08/2020]

Result:

A

See step  2

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
   NOTE:

   Do not turn the power switch on (READY).

3. Enter the following menus: Powertrain/Hybrid Control/Data List/Hybrid Battery Block 1 to 11 Voltage.
   NOTE:

   Select "Hybrid Battery Block 1 to 11 Voltage" only. (Do not select any other Data List items.)

   Powertrain > Hybrid Control > Data List

   Tester Display
   Hybrid Battery Block 1 Voltage
   Hybrid Battery Block 2 Voltage
   Hybrid Battery Block 3 Voltage
   Hybrid Battery Block 4 Voltage
   Hybrid Battery Block 5 Voltage
   Hybrid Battery Block 6 Voltage
   Hybrid Battery Block 7 Voltage
   Hybrid Battery Block 8 Voltage
   Hybrid Battery Block 9 Voltage
   Hybrid Battery Block 10 Voltage
   Hybrid Battery Block 11 Voltage

4. Check the voltage of each HV battery block voltage of "Hybrid Battery Block 1 to 11 Voltage" in the Data List with the power switch on (IG).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Specified Condition

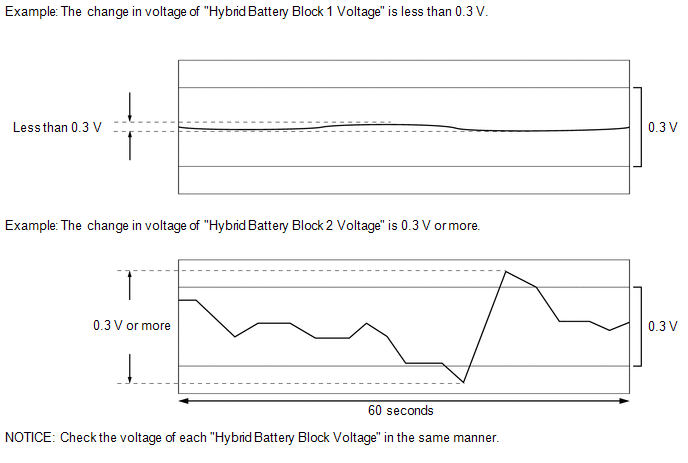

   Any "Hybrid Battery Block Voltage" changes by 0.3 V or more, 60 seconds after the power switch is turned on (IG). (The difference between the maximum and minimum voltage is 0.3 V or more.)

   Result

   Result	Proceed to
   The change in voltage of any "Hybrid Battery Block Voltage" is 0.3 V or more.	A
   Other than above	B

5. Turn the power switch off.

Result:

A

REPLACE BATTERY VOLTAGE SENSOR. Refer to  REMOVAL [04/2018 - 08/2020]

Result:

B

REPLACE HV BATTERY JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [04/2018 - 08/2020]
