Removal [04/2018 - 08/2021]: Procedure

  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to PROCEDURE - Step 1

  2. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [04/2018 - 08/2020] , or refer to REMOVAL [08/2020 - 08/2021]

  3. CHECK TERMINAL VOLTAGE
    1. Disconnect the engine room main wire.

      Refer to PROCEDURE - Step 2 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 2 [08/2020 - 08/2021]

    2. Remove the connector cover assembly.

      Refer to PROCEDURE - Step 9 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 9 [08/2020 - 08/2021]

    3. Check the terminal voltage.

      Refer to PROCEDURE - Step 10 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 10 [08/2020 - 08/2021]

    4. Install the connector cover assembly.

      Refer to PROCEDURE - Step 5 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 6 [08/2020 - 08/2021]

    5. Connect the engine room main wire.

      Refer to PROCEDURE - Step 19 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 19 [08/2020 -]

  4. REMOVE RADIATOR ASSEMBLY

    Refer to REMOVAL [04/2018 - 08/2021]

  5. DISCONNECT SUCTION HOSE SUB-ASSEMBLY

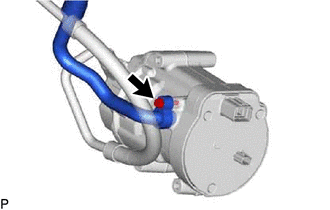

    1. Remove the bolt and disconnect the suction hose sub-assembly from the compressor with motor assembly.
      GTY945530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the suction hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  6. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE SUB-ASSEMBLY

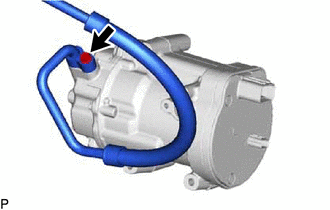

    1. Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose sub-assembly from the compressor with motor assembly.
      GTY925825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the No. 1 cooler refrigerant discharge hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  7. REMOVE COMPRESSOR WITH MOTOR ASSEMBLY

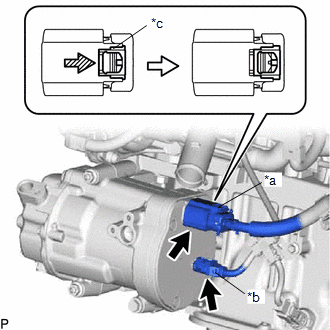

    1. Using a screwdriver, slide the green-colored lock of the connector (A) as shown in the illustration to release it and disconnect the connector.
      GTY854712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Connector (A)
      *b Connector (B)
      *c Green-colored Lock
      Slide
      WARNING:

      Make sure to wear insulated gloves.

      NOTE:

      Insulate the disconnected terminals and connector with insulating tape.

    2. Disconnect the connector (B).

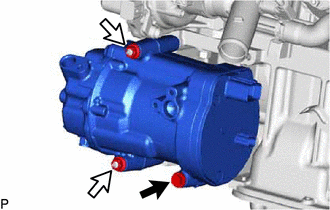

    3. Remove the bolt and 2 nuts.
      GTY850054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

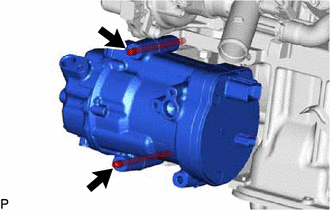

    4. Using an E8 "TORX" socket wrench, remove the 2 stud bolts and compressor with motor assembly.
      GTY925789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
