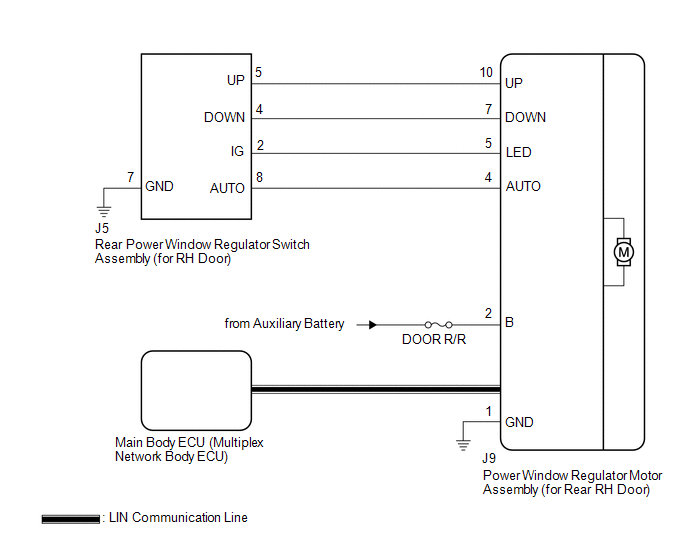

Rear Power Window RH does not Operate with Rear Power Window Switch RH [04/2018 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY939682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
