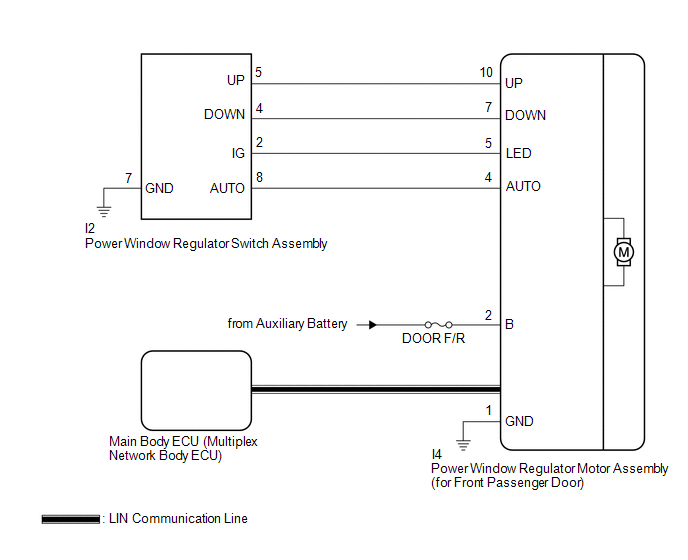

Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [04/2018 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY899446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
