DTC B2312: Power Window Switch Malfunction [04/2018 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

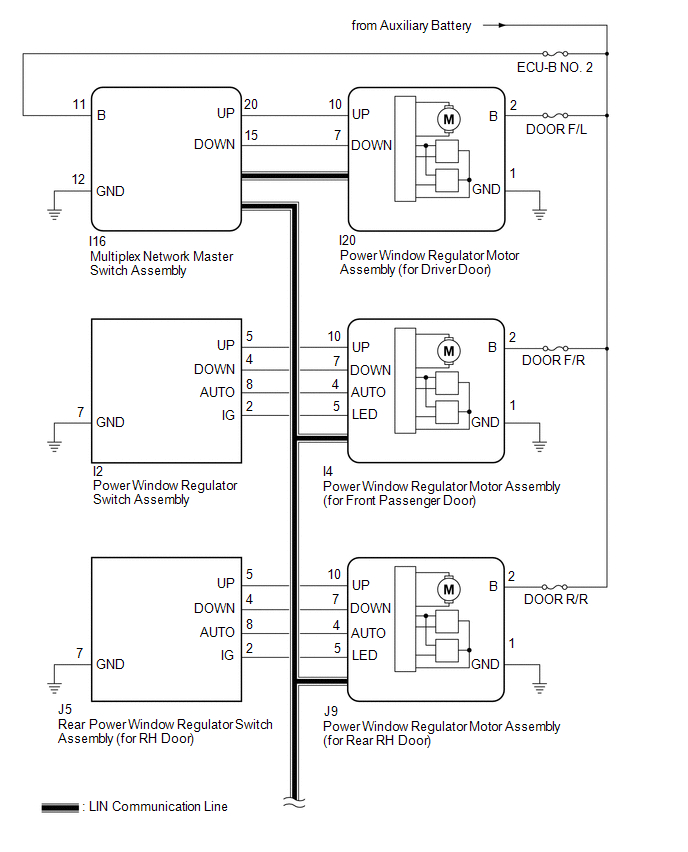

GTY901447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

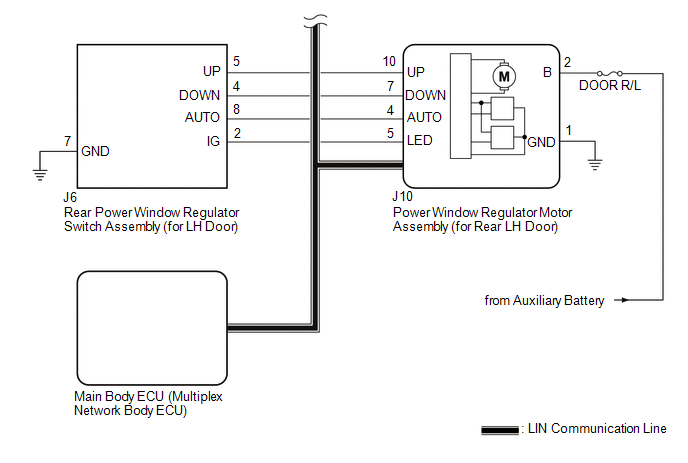

GTY892081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
